Soma Sengupta1 • Luke E. Pater2 • Daniel Pomeranz Krummel1 • Bruce J. Aronow3 • Yoshihisa Hirota4,5 • Timothy N. Phoenix6,7 • Atsuo T. Sasaki4,8,9,10
1Department of Neurology and Rehabilitation Medicine, University of Cincinnati College of Medicine, Cincinnati, OH, USA; 2Department of Radiation Oncology at the University of Cincinnati College of Medicine, Cincinnati, OH, USA; 3Department of Biomedical Informatics, Cincinnati Children’s Hospital Medical Center, Cincinnati, Ohio, USA; 4Division of Hematology and Oncology, Department of Internal Medicine, University of Cincinnati College of Medicine, Cincinnati, OH, USA; 5Department of Bioscience and Engineering, College of Systems Engineering and Science, Shibaura Institute of Technology, Fukasaku, Minuma-ku, Saitama, Japan; 6Division of Pharmaceutical Sciences, James L. Winkle College of Pharmacy, University of Cincinnati, Cincinnati, Ohio, USA; 7Research in Patient Services, Cincinnati Children’s Hospital Medical Center (CCHMC), Cincinnati, Ohio; USA; 8Department of Cancer Biology, University of Cincinnati College of Medicine, OH, USA; 9Department of Neurosurgery, Brain Tumor Center at UC Gardner Neuroscience Institute, Cincinnati, OH, USA; 10Institute for Advanced Biosciences, Keio University, Tsuruoka, Japan
Abstract: Despite recent advances in general cancer treatment, glioblastoma remains among the most lethal of human malignancies. Even with aggressive multimodal radiation and chemotherapy after surgery, glioblastoma recurs with a bleak prognosis. Decades of research focused on strategies such as increasing radiation sensitivity and interference with oncogenic signal transduction have yielded only incremental improvements at best. This is due in part to the radioresistance of glioblastoma and molecular heterogeneity of tumor cells. We hypothesize is that the development of more effective glioblastoma therapies will require: (i) a more accurate molecular analysis of glioblastoma so as to predict response to therapy; (ii) better genetically engineered mouse models, which can faithfully recapitulate human glioblastoma and the tumor microenvironment to test new approaches and (iii) development and application of more accurate and focused methods to deliver sustained high energy particles to glioblastoma tumor sites. This chapter describes the current state-of-the-art molecular analysis approaches, latest in glioma mouse modelling, and advances in the application of proton therapy treatment and research. By integrating basic and clinical research with cutting-edge technologies, a mechanistic understanding of glioblastoma therapy resistance and pathogenesis and the development of new therapeutics to overcome the therapeutic resistance of glioblastoma will be advanced.
Keywords: brain tumor-associated edema; in utero electroporation-based glioma mouse models; mycophenolic acid; proton beam therapy; single-cell RNA sequence
Authors for correspondence: Soma Sengupta, Department of Neurology and Rehabilitation Medicine, University of Cincinnati College of Medicine, Cincinnati, OH, USA. Email: sengupsm@ucmail.uc.edu; Luke E. Pater, Department of Radiation Oncology at the University of Cincinnati Barrett Cancer Center, Cincinnati, OH, USA. Email: paterl@ucmail.uc.edu; Timothy N. Phoenix, Division of Pharmaceutical Sciences, James L. Winkle College of Pharmacy, University of Cincinnati, Cincinnati, Ohio, USA. Email: phoenity@ucmail.uc.edu; Atsuo T. Sasaki, Division of Hematology and Oncology, Department of Internal Medicine, University of Cincinnati College of Medicine, Cincinnati, OH, USA. Email: atsuo.sasaki@uc.edu
Doi: https://doi.org/10.36255/exonpublications.gliomas.2021.chapter5
In: Gliomas. Debinski W (Editor). Exon Publications, Brisbane, Australia. ISBN: 978-0-6450017-4-7; Doi: https://doi.org/10.36255/exonpublications.gliomas.2021
Copyright: The Authors.
License: This open access article is licenced under Creative Commons Attribution-NonCommercial 4.0 International (CC BY-NC 4.0) https://creativecommons.org/licenses/by-nc/4.0/
Glioblastoma is a WHO Grade IV primary brain cancer with an abysmal prognosis (1). The current gold standard initial treatment approach is a gross resection of the tumor guided by the use of 5-Aminolevulinic Acid (5-ALA), a porphyrin precursor, to identify the infiltrative margins (2). Such emerging imaging approaches combined with advances in surgical techniques have improved surgical outcomes, but the undetected residual microscopic disease remains a significant problem. Gross surgical resection, when anatomically possible, is followed by a one month break and then chemoradiation and ionizing radiation (IR) induces DNA double-strand breaks through direct high-energy damage to the sugar backbone of DNA, but also through free radicals generated in cells, which accounts for 60–70% of DNA lesions, exerting its genotoxic and ultimately cytotoxic effect (3, 4). However, glioblastoma is intrinsically resistant to IR (5–13), and therefore ionizing radiation therapy yields only marginal improvements in patient survival (14, 15), with a nearly 80% rate of recurrence within the high dose radiation field (16, 17). The nature of the resistance is unclear, but the general consensus is that it is related at least in part to increased glioblastoma tolerance to reactive oxygen species (11, 12, 18–20) and enhanced GTP metabolism (21–23).
Stupp and colleagues described a therapeutic approach that remains the standard of care therapy for glioblastoma. The “Stupp protocol,” as it is commonly called, uses IR plus concomitant and adjuvant temozolomide (TMZ, Temodar) (15). The addition of temozolomide, DNA-damage based treatment through alkylating guanine and adenine bases of DNA, to radiation, improves median survival by approximately an additional 6 months (15). It was noted that MGMT methylated glioblastomas fared better in terms of survival than MGMT unmethylated glioblastomas. These studies indicate that the efficacy of IR can be significantly improved by combination therapy. These results also point to the importance of mechanistic understanding of radioresistance and the identification of a new pathway that more effectively increases the efficacy of radiation on the tumor but not normal tissue.
Recently, Stupp and colleagues described the use of tumor treating fields (TTFs) with the standard of care therapy in glioblastoma (IR plus TMZ) in a randomized open-label trial of 695 glioblastoma patients, reporting that median progression-free survival was 6.7 months in the TTF plus standard of care group versus 4 months in the standard of care group alone (21). Phase 3 clinical trials of bevacizumab (Avastin) in glioblastoma showed no survival advantage; however, in glioblastoma patients with steroid dependence, bevacizumab can be used as a steroid-sparing agent (22). After the significant investment of resources into the upfront clinical trial setting of glioblastoma with immunotherapies, neoadjuvant anti-PD-1 therapy provided a promising survival benefit in recurrent glioblastoma (23), however, the Phase III study was negative in terms of survival benefit. Many vaccine trials are on the horizon for glioblastomas, and these are promising for patients who fulfill the selection criteria for these studies. However, many glioblastoma patients do not qualify for vaccine studies due to the location of the tumor, the immunogenicity of their tumor, and their performance status (24, 25). A critical challenge has been to develop new ways for accurate and rapid prediction of an individual patient’s susceptibility to treatment.
Identifying a number of molecular genetic (for example, p53, NF1, PTEN, PDGFR) and signaling pathways (for example, RAS/ERK, PI3K/AKT pathways) involved in cancer development has led to several targeted agents being investigated in clinical evaluation for glioblastoma (26–28). To test the effects of the identified pathway and drug, preclinical mouse models have proven to be an invaluable tool, but unfortunately, none of these targets have been translatable in the clinical arena. Glioblastoma mouse models allow one to investigate basic mechanisms—enabling precise examination of numerous aspects, including cellular origins, regional differences in microenvironments, and the function of specific genetic events. However, a major challenge has been to develop preclinical mouse models that recapitulate the human glioblastoma nature in a time and cost-effective fashion. Furthermore, gliomas encompass a diverse set of tumors that can differ in location, age of onset, mutation status, and histopathological features making this an extraordinary challenge.
So, how can we change the prognosis of a patient with a glioblastoma? What target(s) should we be investigating as possible therapeutic vulnerabilities? How can we overcome the various barriers to generate and use glioblastoma mouse models? This chapter will review new advances in radiation therapeutics, molecular analysis of glioblastomas, and new animal models that will address these questions.
When a glioblastoma tumor is resected surgically, the tumor cells can be an invaluable source of information that can (and should) be utilized to guide patient treatment (personalized medicine). The tumor cells could potentially be used in a number of platforms, including RNA expression analysis (29–36), protein characterization (37–41), and metabolic profiling (37–39) (Figure 1). Once targets are identified, appropriate models can be generated to test treatment strategies, including 3D platforms such as ex vivo Organ-on-Chip (40, 41), in vitro cell culture methods including spheroids and organoids, and of course mouse models, transgenic and/or intracranial xenograft (37, 42–44) as well as large animals (for example, canine) (45, 46). Below we detail a newer emerging mouse model approach. Here we detail analysis of RNA sequencing to identify therapeutic targets and RNA-based therapeutics to target the mRNA or non-coding RNA.

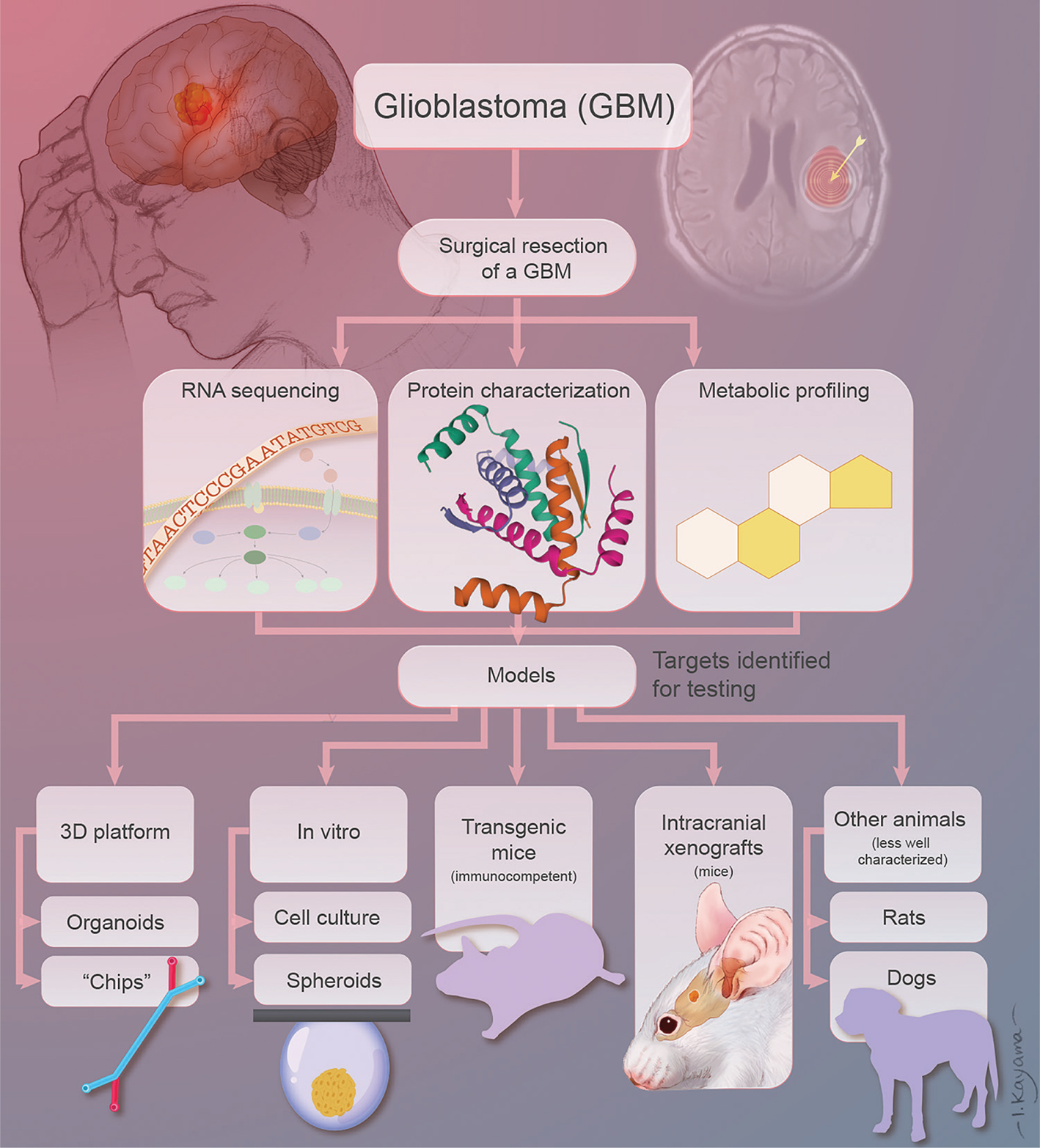

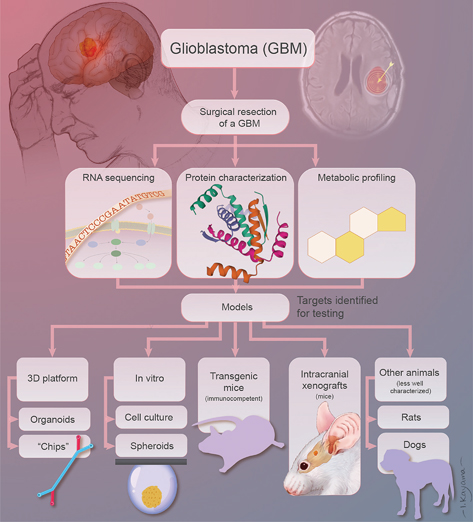

Figure 1. A flow diagram of a personalized medicine approach of a patient’s glioblastoma tumor. This diagram shows how a patient with a glioblastoma experiencing headaches, has imaging that localizes a tumor. When the tumor is resected surgically, it could potentially be used in a number of platforms, including, RNA sequencing, protein characterization and metabolic profiling. Once targets are identified the appropriate models can be generated as shown in the flow diagram, including, 3D platforms, in vitro cell culture methods, transgenic mice, intracranial xenografts and large animal studies.
The genomic analyses of the tumor tissue or whole cells significantly increased our understanding of GBM in patients. For example, several whole-genome DNA sequencing studies reported (47) resulted in subtyping of glioblastomas based on their molecular phenotype. The IDH1/2-mutant GBMs are distinct categories, for example, mutations in the EGFR, PDGFRA, NF1 genes; mutations in hTERT promoter; epigenetic changes such as altered methylation of the MGMT gene promoter (48, 49). While advanced genetic analysis has improved the prediction of glioma outcomes and treatment approaches (50–52), unpredictable significant inter-individual variation in therapeutic efficacy is often seen in the treatment of glioblastoma patients. Apart from the tumor itself, glioblastomas are heterogeneous, composed of diverse cells, such as immune cells and stromal cells (53, 54).
Two of the significant challenges are understanding the pathogenesis of glioblastoma and predicting more accurately patient sensitivity to a selected treatment(s). The analysis of individual parts of the genome and the transcribed RNA provides the potential for a more comprehensive understanding of the pathogenesis of glioma and possible treatments tailored to individual patients. The recent development of single-cell RNA-sequencing (scRNA-seq) has enabled functional analysis of individual glioblastoma cells. The differential transcriptional landscape between individual cells can have profound functional consequences, for example, cellular, molecular, genetic, epigenetic, and metabolic heterogeneity. These heterogeneities affect the course of glioblastoma development and therapeutic responses, challenging personalized medicine. Historically, single-cell transcriptional analysis is started by single-cell quantitative PCR (qPCR). Rapid progress in the development of sequencing and single-cell isolation technologies in recent years has enabled RNA sequencing at single-cell levels (55). The scRNA-seq technology can uncover highly complex as well as rare cell populations. Also, the time-resolved scRNA-seq analysis can clarify the regulatory relationship between gene expression in responses to stimuli (for example, therapeutic treatment) and track the trajectories of cell lineages.
Suva and colleagues (56) utilized scRNA-seq analysis of 28 glioblastomas and bulk expression analysis of 401 specimens from the TCGA, combined with functional approaches and single-cell lineage tracing to create a cohesive model for the genetic heterogeneity and cellular states in glioblastomas. They found that malignant cell niches in glioblastomas are influenced by copy number amplifications of CDK4, EGFR, and PDGFR loci and mutations in NF1. Couturier et al. (57), utilizing scRNA-seq analysis of 53,586 adult glioblastoma cells and 22,637 normal human fetal brain cells, reported a conserved neural tri-lineage hierarchy centered around glial progenitor-like cells. They reported that within this progenitor population, most cancer cells are centered around said glial progenitor-like cells and that the course of glioblastoma development is along with the conserved neurodevelopmental gene programs, which possesses a rapidly dividing progenitor population. Their scRNA-seq analysis revealed new insight on primary glioblastomas and created a hierarchical map to identify therapeutic targets specific to progenitor cancer stem cells.
While there is an emphasis placed on the study of the expression of protein-coding genes (mRNA transcripts), it is essential not to overlook the potential contribution of non-coding genes as well as promoter and enhancer elements. Functional studies in disparate systemic cancers have shown that long non-coding RNAs and miRNAs can promote pathogenesis. Integration analyses of long non-coding RNAs and competing endogenous RNA networks in glioblastomas are much rarer. These networks may be the key to understanding the pathogenesis of glioblastomas, as well as predicting the therapeutic efficacy of the selected treatment, thus representing an untapped therapeutic potential (58).
We suspect that many potential targets will not have targeted drugs available. Thus, we should keep open the possibility of targeting transcripts and/or non-coding RNAs with RNA-based therapeutics (such as siRNAs, ADARs, gRNA for a CRISPR-Cas9 approach) and the development of technologies that can aid their delivery to a glioblastoma. On this front, an emerging clinical technology that may significantly impact glioblastoma treatment is the application of focused ultrasound combined with microbubbles to facilitate the delivery of RNA-based therapeutics as well as large drugs and monoclonal antibodies into glioblastomas (59, 60). Importantly, this non-invasive technology can overcome the blood-brain/blood-tumor barriers for delivery of RNA-based therapeutics and the nanoparticles used to aid their delivery, but many agents that might be effective in vitro but because of their size/mass cannot cross the blood-brain/blood-tumor barriers, for example, earlier generations of EGFR tyrosine kinase inhibitors and newer agents such as monoclonal antibodies and vaccines (61, 62).
Developing animal models that faithfully recapitulate the features of human gliomas is essential for conducting accurate preclinical studies that facilitate the development of novel drugs and therapeutic strategies that can be translated into the clinic. While the establishment of patient-derived cell lines and xenograft models has dramatically advanced our understanding of this deadly disease, limitations for patient-derived models include the inability to establish consistent cultures from tumors, the presence of numerous and complex genetic events, and the use of immunodeficient hosts, which limits their use for immunotherapy studies (63). Traditionally, immunocompetent glioblastoma mouse models have been generated using the knock-out and transgenic mouse approach. However, the knock-out and transgenic-mouse approach often require crossing with other mutant mice (for example, Trp53-KO, Pten-KO), which takes a number of years and costs to maintain the colonies (63). The replication-competent ALV splice acceptor (RCAS)/tv-a glioblastoma system developed by Holland’s group overcomes this issue (64, 65). The engineered RCAS virus carrying the gene of interest (for example, EGFR, shRNA for PTEN, sgRNA for p53) can be delivered to the specific cells (for example, glia) that is engineered to express its receptor t-va (64, 65). While the RCAS/t-va system is a revolutionized technology, potential limitations are that the RCAS virus vector typically allows the small size of the insert (3 kb), and it requires t-va expressing transgenic mouse; thus, the system is basically incompatible with the existing mutant mouse. In this section, we highlight in utero electroporation (IUE) based glioma mouse models, which have been developed for both adult and pediatric gliomas (Figure 2).

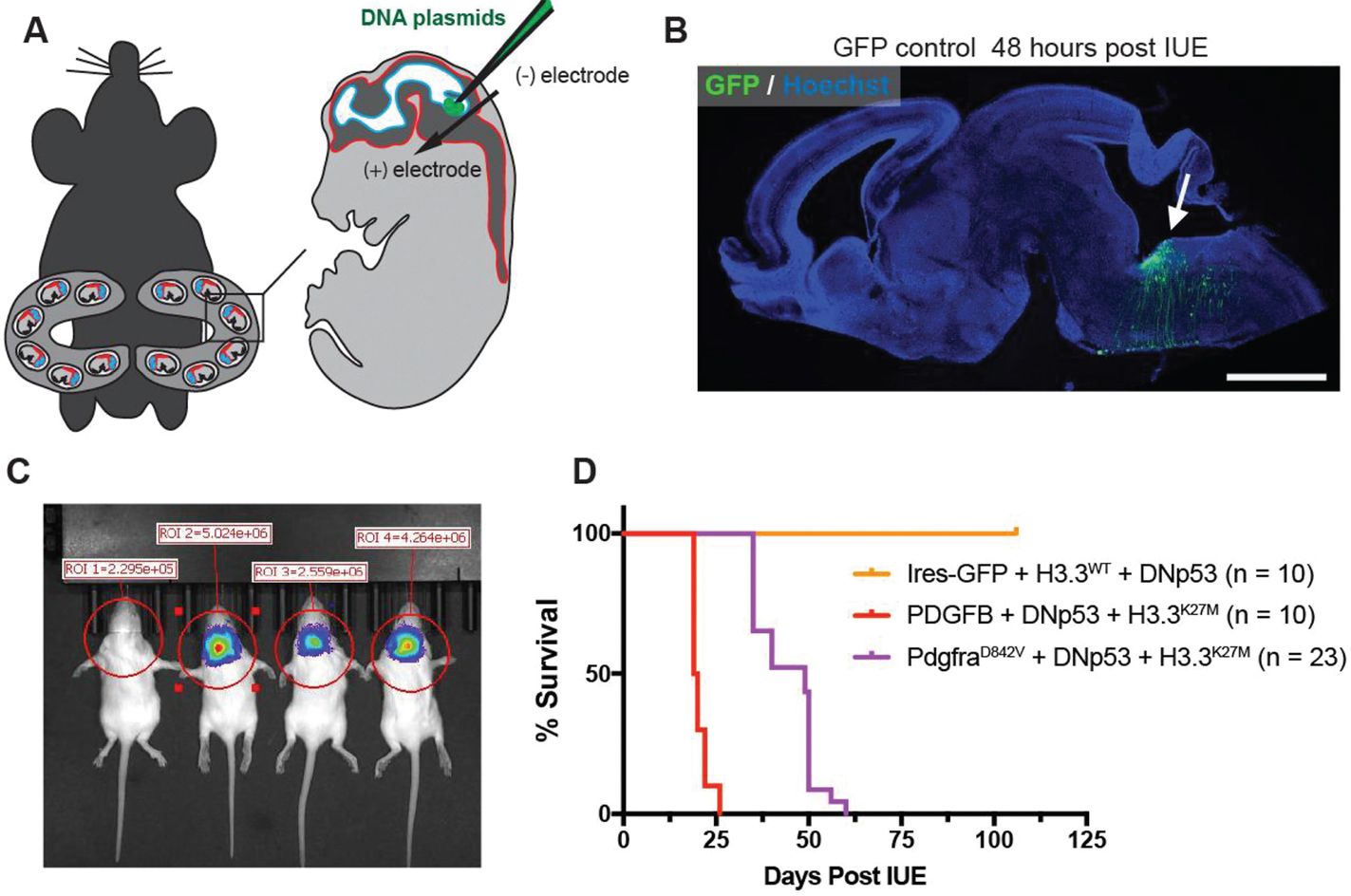

Figure 2. In utero electroporation-based models of DIPG. A. Schematic cartoon of the IUE procedure targeting the developing embryonic brainstem. B. Representative image of GFP-positive transfected brainstem neural stem and progenitor cells 48 hours post brainstem IUE in a sagittal brain section. C. Example of luciferase positive and negative IUE pups at two weeks postnatal. D. Survival curve for different oncogenic IUE combinations depicting different rates of tumorigenesis.
To address some of the drawbacks of traditional genetic mouse models, including high cost and lengthy development times, a number of groups have utilized IUE as a flexible and rapid platform to develop glioma mouse models. IUE of the developing brain was first described by Tabata and Nakajima in 2001 (66) and has traditionally been used to label and track cellular migration or the impact of transient genetic manipulations on cellular proliferation and differentiation (67). More recently, a number of laboratories have paired this technique with advances in DNA editing technologies to develop new brain tumor mouse models (68–70). First, the application of CRISPR-Cas9 technology to directly edit the mouse genome has been successfully used to generate adult glioma mouse models (68). By transfecting guide RNAs (gRNA) targeting known glioma mutations, such as Nf1, Trp53, and Pten, along with the Cas9 protein, Zuckermann et al. first described this efficient method to create triple loss-of-function mutant adult glioma mouse models using IUE (68). They validated the effectiveness of CRISPR-Cas9 gRNAs at generating frameshift INDELs within targeted genes; successfully targeted IUE offspring developed fully penetrant gliomas. This triple-CRISPR model has been used by a number of other groups, providing a platform to screen genetic variants (71, 72) and study functional interactions between tumor cells and the microenvironment (73).
The ability to restrict transfection to specific brain areas with IUE also provides an opportunity to model regionally distinct glioma subtypes, such as diffuse intrinsic pontine glioma (DIPG), a highly lethal pediatric glioma that arises in the brainstem (74–76). Compared to adult gliomas, DIPGs harbor unique genetic alterations, including histone K27M mutations that are found in approximately 80% of cases (77). The use of traditional genetic mouse models to model histone mutations did not result in glioma formation, yet the introduction of histone K27M mutations, paired with Tp53 loss-of-function and Pdgfra expression by cortical or brainstem targeted IUE produced fully penetrant gliomas (78). Additional IUE based DIPG mouse models generated by Patel et al. revealed a range of latencies, histopathologies, and gene expression changes induced by specific combinations of mutations used to model DIPG (70). In this study, they noted the importance of histone K27M mutations in accelerating glioma formation in the presence of PdgfraD842V + DN-p53 (dominant-negative p53) and its requirement for tumor formation in WT-Pdgfra + DN-p53 backgrounds. Besides hastening glioma development, H3 K27M mutations drove epigenetic and transcriptional changes that mirror those identified in K27M mutant DIPG patient samples, including loss of H3K27me3 (79) and decreased CDKN2A (p16) expression, respectively (80, 81).
Developing animal models that recapitulate the features of human gliomas is essential for conducting accurate preclinical studies to improve the prediction of drug penetration and efficacy, as well as radiation efficacy. Utilizing the IUE platform to generate regionally and genetically distinct glioma mouse model in a rapid and flexible manner provides exciting new research possibilities. This includes investigating recently identified mutations discovered by next-generation sequencing studies of patient samples or targeting DNA transfection to specific cell-types to test the impact of cellular origin on tumorigenesis. In addition, the immune competency status of these IUE glioma mouse models also provides an in vivo system to examine immune-modulatory and immunotherapy strategies. Our recent studies have shown that an IUE-based high-grade glioma is a powerful approach, revealing that the efficacy of dasatinib treatment of PdgfraD842V + DN-p53 high-grade glioma is enhanced with everolimus (82). The results suggest a promising route for improving targeted therapy for high-grade glioma patient with the driver mutation of PDGFα and p53.
Theoretically, higher doses of radiation increase the anti-glioma effect. However, an increase in dose is generally associated with an increased risk of radiation necrosis and toxicity to normal surrounding tissue (83). Various technological advances have led to improved delivery systems in radiotherapy. Contact radiotherapy via radioactive sources and superficial energies was superseded by 2-dimensional radiotherapy with the ability to generate increasing energies of electrons and generated photons. This advanced with the advent of computed tomography to 3-dimensional treatment. Intensity-modulated radiotherapy, improving conformality, and advanced planning techniques were made possible by computer technology improvements (84). In addition, significant advances in the treatment of malignancies were made in the ability to use various particles. In this section, we focus on proton beam therapy (PBT), one of the most precise and advanced forms of radiation therapy available in the world today.
Stereotactic radiosurgery may also be considered in the upfront or the more commonly recurrent setting for glioma treatment. This is an ablative therapy of very high radiotherapy doses administered over traditionally one, but up to five fractions. In the upfront setting, consideration is primarily focused on decreasing the number of fractions received, typically spanning six weeks for 30 total treatments (85). For treatment at the time of relapse, both fractionated and stereotactic radiotherapy may be considered. As at the time of presentation, fractionation allows for the treatment of larger volumes commonly associated with these infiltrative tumors. Yet, radiosurgery may be appealing for both conveniences as well as it is biologically appealing to overcome some of the radioresistant mechanism of gliomas (86). Future directions within radiotherapy in glioma treatment will continue to improve upon advanced planning and delivery systems. In addition, combinatorial therapies maximizing efficacy and minimizing toxicity continue to be investigated.
Following photon radiation (ionizing radiation), proton radiation has become the predominant modality used in the treatment of brain tumors. Due to the relatively low mass and lack of charge, photons slowly lose energy along a path length extending through the entirety of the patient. Conversely, due to high relative mass and associated charge, protons have a dose deposition concentrated near the end of their range, allowing the bulk of radiation dose deposited in a highly confined area, termed the “Bragg peak” (Figure 3). The Bragg peak is the characteristic dose deposition profile of a proton with nearly all energy loss just prior to its end of the range (87). This allows for a decrease in radiation exposure downstream from the target tissue, decreasing the side effects and complications of radiotherapy.

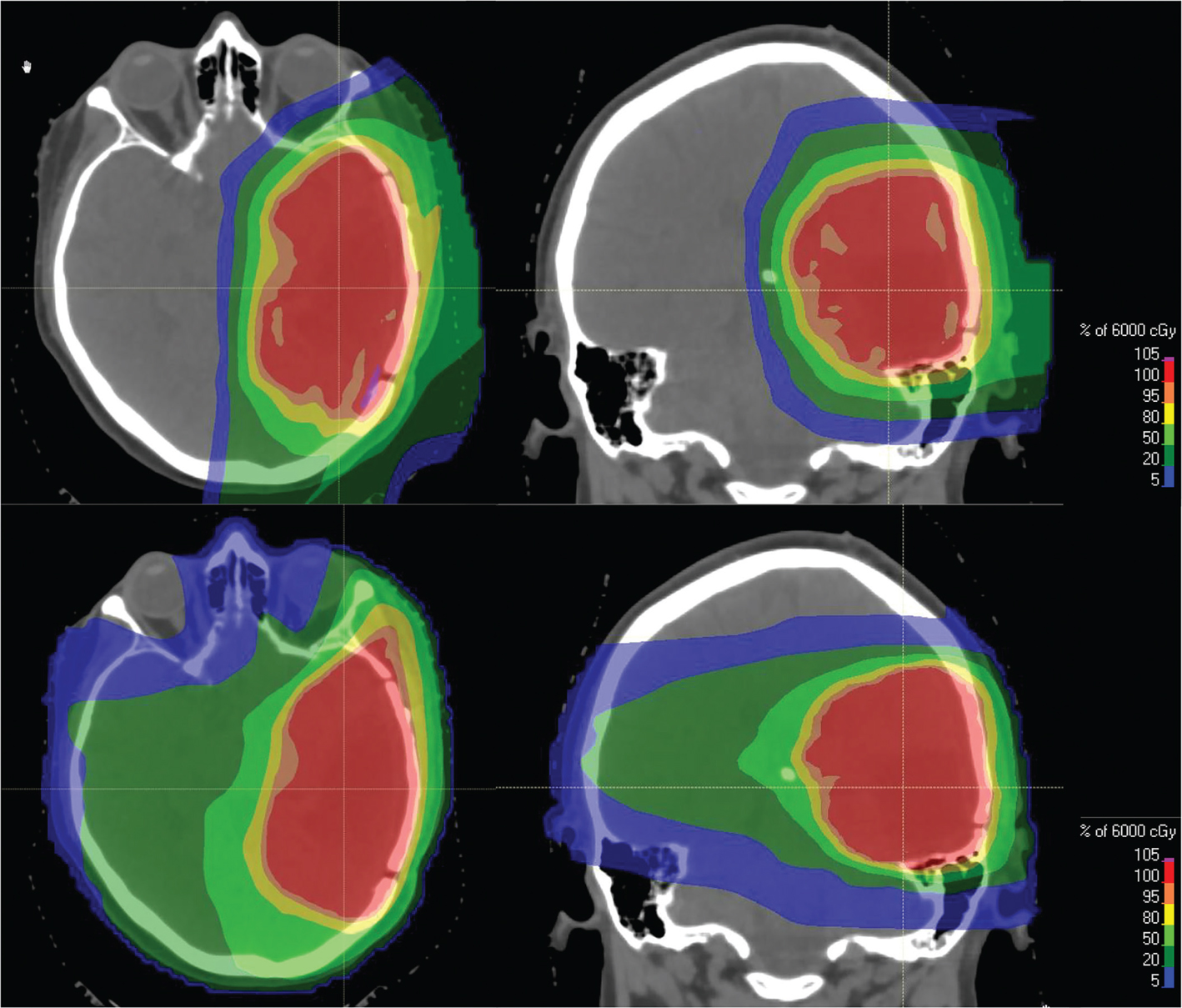

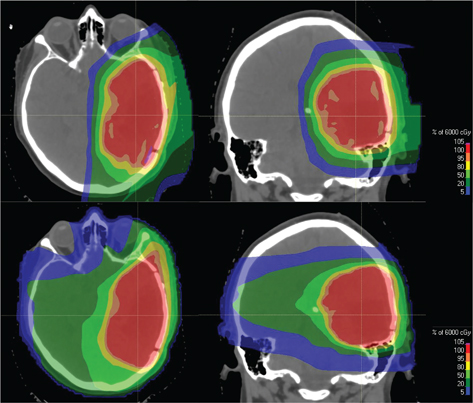

Figure 3. Comparative dosimetry for left temporal glioma radiotherapy treatment with protons (upper) and photons (lower). Prescription is for 60 Cobalt Gray Equivalent in 30 fractions. Noted decrease in radiotherapy exposure to the eyes, optic apparatus, brainstem, and contralateral structures.
The superiority in the conformality and accuracy of proton beam therapy is a critical advantage for the treatment of brain tumors, circumventing the side effects and potentially allowing for an increase in the administered dose to the tumor. Proton beam radiotherapy has the capability to reduce the dose to non-tumor tissue in virtually all tumor locations within the brain (88, 89). The magnitude and clinical benefit of these reductions are variable and require clinical determination by the radiation oncologist. In the pediatric setting where radiation exposure to developing tissue is of the highest concern, studies have shown detriment to cognition and neuroendocrine function from radiotherapy exposures (90). Dosimetric studies have confirmed a decrease in radiation exposure to structures associated with memory and cognition utilizing proton radiotherapy (91). Early studies reporting neurocognitive outcomes in pediatric patients undergoing proton beam therapy correlate these dosimetric changes to favorable outcomes compared to similar photon historical cohorts (92, 93).
The use of proton radiotherapy in adult brain tumors was constrained by the availability of these machines and was, therefore, initially reserved predominantly for tumors considered radioresistant, thus requiring higher doses. Representative tumors include skull base chordoma and chondrosarcoma, and uveal melanoma, as well as some benign processes (94). With the expanding number of facilities increasing access to proton radiotherapy, indications for proton radiotherapy have similarly increased. Brain tumors of favorable prognosis in the adult population are now considered for proton radiotherapy to minimize long-term toxicity. In addition, proton radiotherapy may be considered in cases of reirradiation where critical structures may have been previously exposed to doses at the threshold of significant risk for toxicity or to minimize the quality of life detriment from large cumulative exposures (95).
Proton beam therapy has been used clinically for over 50 years. However, proton beam therapy was only available for a few populations of patients due to its cost and limited availability. Thanks to significant advances in technology, there are now 31 proton therapy centers operative in the USA today. As the numbers of proton centers increase, there has been more consideration for the basic research requirements that would expand the potential application of proton therapy and improve its efficacy. Towards this end, Cincinnati Children’s Hospital invested $120 million and launched one of the most advanced proton research and cancer treatment centers in the world in 2016. The facility includes several tracks for basic biological research to investigate the cellular responses of tumors to proton radiation and for translational research to develop and refine other treatments that can augment proton therapy. While the majority of current research is undertaken by cooperation among the local entities (Cincinnati Children’s Hospital Medical Center and the University of Cincinnati), collaborations across countries and continents are widely open in many directions and ongoing.
The current standard of care for glioblastoma is surgical resection followed by radiation combined with temozolomide. Adjuvant therapy is vital because glioblastoma grows invasively in the surrounding brain tissue and, almost invariably, is rarely completely resectable. Patient response to treatment is often unpredictable and can differ significantly from experimental results in mice. A critical challenge is to develop new ways for accurate and rapid prediction of an individual patient’s susceptibility to treatment. In this chapter, we have discussed three approaches to achieve this goal: (i) new genomic and RNA molecular analysis, (ii) an enhanced glioblastoma mouse model using IUE technology, and (iii) improved radiotherapy using proton therapy.
Integrating sophisticated pathway analysis with mouse models that recapitulate the human disease coupled with the ability to perform basic studies on the mechanisms of photon therapy has a high potential to overcome the current challenges in GBM therapy. While this needs an establishment of a framework to proceed with a sample obtained from a patient and link the result of the approaches, once established, we expect that the combination of these three approached with the current standard of care will enable choosing the best treatment and markedly improve glioblastoma outcomes.
