Karla Cervantes Gracia1 • Holger Husi2,3
1Basic Sciences Division, Universidad de Monterrey, San Pedro Garza García, N.L. Mexico; 2Institute of Cardiovascular and Medical Sciences, BHF Glasgow Cardiovascular Research Centre, University of Glasgow, Glasgow, UK; 3Division of Biomedical Sciences, Centre for Health Science, University of Highlands and Islands, Inverness, UK
Abstract: Understanding of biological processes and aberrations in disease conditions has over the years moved away from the study of single molecules to a more holistic and all-encompassing view to investigate the entire spectrum of proteins. This method, termed proteomics, has been enabled principally by mass spectrometry techniques. The power of mass spectrometry-based proteomics lays in its ability to investigate an entire proteome and associated expression or modification states of a huge amount of proteins in one single experiment. This massive amount of data requires a high level of automation in data processing to render it into a reduced set of information that can be used to answer the initial hypotheses, explore the biology or contextualize molecular changes associated with a physiological attribute. This chapter gives an overview of the most common proteomic approaches, biological sample considerations and data acquisition methods, data processing, software solutions for the various steps and further functional analyses of biological data. This enables the comparison of various datasets as a summation of individual experiments, to cross-compare sample types and other metadata. There are many approach pipelines in existence that cover specialist disciplines and data analytics steps, and it is a certainty that many more data analysis methodologies will be generated over the coming years, but it also emphasizes the inherent place of proteomic technologies in research in elucidating the nature of biological processes and understanding of disease etiology.
Keywords: data analysis; mass spectrometry; proteomics; software; workflows
Author for correspondence: Holger Husi, Division of Biomedical Sciences, University of the Highlands and Islands, Centre for Health Science, Inverness IV2 3JH, UK. Email: Holger.Husi@uhi.ac.uk
Doi: http://dx.doi.org/10.15586/computationalbiology.2019.ch8
In: Computational Biology. Holger Husi (Editor), Codon Publications, Brisbane, Australia. ISBN: 978-0-9944381-9-5; Doi: http://dx.doi.org/10.15586/computationalbiology.2019
Copyright: The Authors.
Licence: This open access article is licensed under Creative Commons Attribution 4.0 International (CC BY 4.0). https://creativecommons.org/licenses/by-nc/4.0/
The development and improvement of high-throughput techniques in “omic” science have paved the way not only to a broader view of the molecules involved in a specific condition but also to generate networks of all interacting elements (genes, proteins, and metabolites) to gain a better understanding of how a specific biological system works. Despite the over-abundance of genomics research in this field, there is so much more complexity left out in a system that can be explained by the understanding and integration of proteomic data. The proteome is more complex and is not as stable as the genome, and it is not only based on what is observed in the genome but also influenced by several factors. Protein expression depends on tissue type, environmental stimuli, and post-translational modifications (PTM) that influence its level of activity, structure, function and regulation (1, 2). Moreover, life depends on proteins, as they are responsible for many complex processes within a cell, from replication, gene transcription and translation to cellular senescence and death. Therefore, by having a better understanding of the proteome, a wider comprehension of cellular regulation can be achieved. Proteomics is the high-throughput study of proteins incorporating the identification, quantitation, analysis and comparison of differential expression of proteins from samples under specific biological conditions. The characterization of the proteome involves the identification of structure, function, interactions and modifications (3).
Because of its improved sensitivity and specificity, mass spectrometry (MS) proteomics is the most widely used approach, and it is considered the method of choice to obtain global measurements of proteins (4). The most common and classic applications of proteomics are to characterize large datasets to create an inventory of identified proteins in different tissue or cellular samples, as well as to generate lists of differentially expressed proteins from samples under specific conditions (5). However, these data alone lack a biological meaning, and therefore, it is essential to pursue additional approaches to allow a better interpretation of biological processes (6, 7).
Qualitative and quantitative methods are also of importance in network analyses. Qualitative approaches are much more common. Although quantitative network analysis can generate more specialized results and are better adapted to generate new insights and advancement in biomedical research by unraveling the significant proteins that interplay in a disease, producing new diagnostic hypothesis, the standardization and homogenization of its analysis still need improvement to establish its reliability and reproducibility when analyzing high-throughput data (8, 9).
High-throughput technologies and bioinformatic tools are fundamental for proteomics data interpretation to discover new biological insights on cellular processes, disease etiology and biomarker candidates. Although these tools are under continuous update and new approaches are implemented, the development of harmonized benchmarks for datasets and analysis, as well as to establish gold-standard workflows, is imperative to produce more reliable and reproducible results, and by doing so, it will help to overcome the challenges of proteomics data interpretation (10, 11).
The acquisition of a vast amount of high-quality raw spectra using MS is nowadays a relatively simple task with the right equipment and involves a high level of automation, which however leads to a fundamental, and crucial, step to mathematically and statistically interrogate the data and ultimately match it to a library of known or hypothetical molecules. This is of particular importance in strategies such as shotgun proteomics and other large-scale MS screens, whereas specific applications such as selective or multiple reaction monitoring (SRM/MRM) have a different requirement for the entire workflow and require appropriate specific software solutions (12). Figure 1 shows a general overview of a typical proteomics workflow, starting from protein and peptide preparation from tissues to the computational procedures to obtain a list of molecules with associated confidence or significance scores that can then be analyzed further.

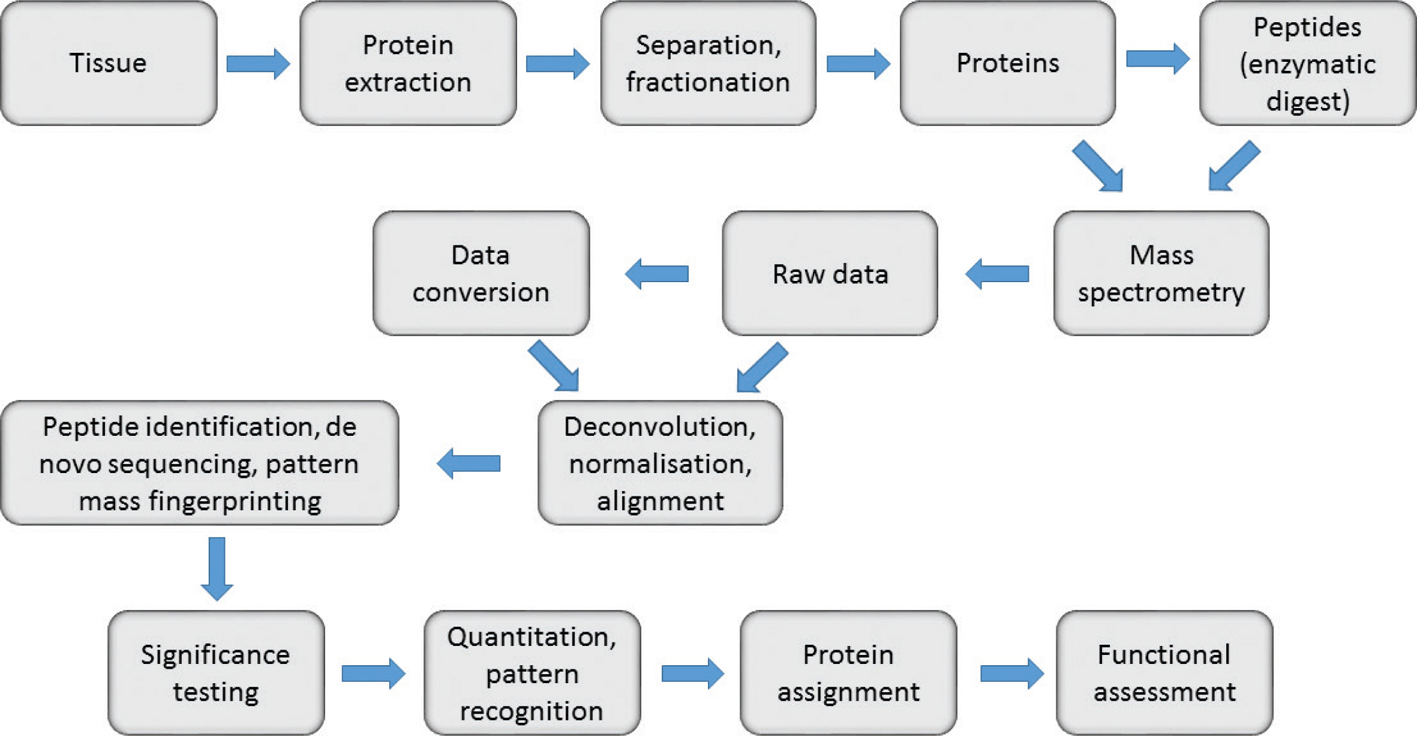

Figure 1 Flowchart and procedures for a generic proteomics pipeline.
Body homeostasis is maintained through specialized systems, which are orchestrated by the interplay between cells, tissues and organs. Each system anomaly can be better described by specific samples; therefore, to characterize diseases, it becomes essential to analyze the proteome of the appropriate samples. Many sample types are suitable for proteomic analysis, including cells, organs, tissues and body fluids. Biomarker discovery helps to identify pathological states, track disease progression and improve diagnostics or disease etiology, which are some of the common applications when using these sample types (13). An important factor to be considered for the success of a proteomic approach is the quality and quantity of the sample, due to the challenge that its complexity implies for MS techniques. As the detection rates of proteins using MS are directly related to the absolute quantity of these biomolecules in a sample, high-abundance proteins tolerate losses during processing quite well. However, the detection rates of low-abundance proteins are usually much more sensitive towards loss due to common instrumentation and processes, and therefore, the preferred workflow is microproteomics, which minimizes this loss and increases the sample processing efficiency (14). Samples, such as the ones derived from cancer or tumour cells, exemplify low-abundance protein samples. They should be analyzed by specific microproteomic workflows with special adaptations of the techniques for sample preparation, cleaning, fractionation and separation to ensure minimal losses before analysis and increase sensitivity of nano/microgram-samples that allows maximal identification of low-abundance proteins (15, 16).
A general overview of disadvantages and applications of each sample-source type is presented in Table 1. Although heterogeneous cell populations that compose tissues can be individually isolated and analyzed, cell lines are believed to reflect the protein composition of primary cells and specific tissues. Moreover, the reproducibility in proteomic analysis using cell lines is one of its main advantages over other sample types. It also allows proteomic subcellular analysis (17). Several applications of proteomic analyses using cell lines have been established to investigate molecular pathways of specified cell types, differences between normal and disease phenotypes, and different stages of diseases (18, 19). However, problems in cell line culturing are rather common if no quality control is carried out and can lead to unreliable results if not detected and treated. The most common problems with cell lines are genomic instability, infections by microorganisms that could alter cell turnover and protein expression patterns and cross-contamination leading to the growth of a mixture of cell types, affecting the results of the study even before proteomic analysis can be performed (20).
TABLE 1 Biological fluids overview: Applications and disadvantages
Biological fluid |
Applications |
Disadvantages |
---|---|---|
Serum and plasma | Serum and plasma have been used for multiple proteomics–based biomarker discovery studies. | Dynamic qualitative and quantitative range of proteins; small number of highly abundant proteins can mask potential biomarkers; biomarker of interest can be lost upon the removal of highly abundant proteins. |
Cerebrospinal fluid (CSF) | Potential diagnostic utility in neurodegenerative diseases including Alzheimer’s, multiple sclerosis and Parkinson’s. | Requires a lumbar puncture or a spinal tap, invasive procedures. Traumatic punctures can alter CSF protein expression levels and skew a diagnosis; small volumes of samples obtained; yield a highly dynamic range of protein concentrations; small number of highly abundant proteins can mask potential biomarkers; depletion techniques are neither time nor cost-effective techniques; biomarker of interest can be lost upon the removal of highly abundant proteins. |
Urine | Good source of biomarkers for urogenital and systemic diseases. | Definition of disease-specific biomarkers is complicated; significant changes in the proteome throughout the day can be connected with the time of collection, fluid intake, diet, exercise, circadian rhythms and circulatory levels of various hormones; presence of MS hampering salts; lower concentration of proteins/peptides compared to serum and plasma. |
Saliva | Most of the biomolecules that are usually detected in urine and blood can also be found in salivary secretions; about 30% of blood proteins are also present in saliva. | Very low concentration of proteins; very rapid protein degradation in whole saliva at room temperature, this may occur during saliva collection and handling. |
Semen | Applications in research areas such as reproduction and prostate cancer, and used for many purposes in the diagnosis of male fertility. | Small number of highly abundant proteins can mask potential biomarkers; biomarker of interest can be lost upon the removal of high abundant proteins. |
Circulating tumour cells (CTC) | Practical application in diagnosis and disease treatment, determine the prognosis of metastatic progression or relapse, monitor anti-cancer treatments, understand the mechanism of metastatic disease and develop new strategies in disease treatment. | Very low abundance of CTC in blood; cell heterogeneity makes it difficult to isolate the whole CTC population. |
Proteomic analysis with tissue culture as a sample is also a very informative approach. It allows the interaction and analysis of the diverse cell types involved in a disease, leading to a broader view of the biological systems of importance in pathology. It is basically based on the growth of tissue outside the organism, under controlled conditions. Tissue samples for this are obtained through surgery from humans or animals. Tissue culture-based proteomic profiling is useful for understanding the biological mechanisms underlying a disease, biomarker and therapeutic target identification as well as effects in a sample due to viral, drug or genetic changes (21). Techniques, such as 3D co-culture systems, fresh tissue proteomics and tumour spheroid models, have improved the analysis and results (22). However, its accessibility remains as its major downside, and no accurate track in disease progression can be performed without re-sampling.
Organ samples can be maintained under specific culture conditions, and its different cell types can be analyzed. It is the most difficult sample to obtain from humans, and since biofluids are secreted from several organs and make proteins more accessible, they are the sample of choice for biomarker discovery and pathology research (23, 24). However, reliability and reproducibility are still issues to be addressed, before they can be eventually established as a good source of clinical proteomics. Like the tissue samples, animal models serve as a good source of organ samples. They provide a controlled environment and the possibility to follow up the changes in proteomic profiling throughout the course of a disease. The major drawback using animal models is that they cannot accurately predict how a system works in humans (25). However, in order to overcome this issue and to have a better and broader understanding of the interaction of human proteome within a system, new engineered model systems have been created, such as multiorgan lab-on-a-chip platforms, that show a better correlation with human systems than animal models, mimicking the key aspects of responses like drug treatment (26, 27).
Besides the analysis of the proteome in cells, proteins secreted by the cells have gained attention when unraveling the etiology of diseases. All together, these proteins are known as secretome, and a specific component of the secretome that has been studied in relation to pathology is the exosome. Exosomes are membrane vesicles, differentiated from other vesicles by size and expression of the CD81 protein. They have a very low abundance of proteins, which is undetectable using biofluid analysis (28). Among these proteins are some that are specific to the biological fluid or cell, making the exosomes an interesting source for biomarkers to advance the identification and understanding of pathologies (29).
Depending on the purpose of the research, diverse body fluids can be collected and processed for proteomic analysis. A general overview of disadvantages and applications of each sample-source type is presented in Table 1. Among the commonly analyzed biological fluids in proteomics are blood, serum, plasma, cerebrospinal fluid (CSF), urine, saliva and semen. The fluctuation in their protein levels is expected to reflect pathophysiological conditions; however, some drawbacks such as protein content, high abundance of masking proteins, and sample instability can lead to complex interpretations (30). Blood, serum and plasma are the most common biological fluids in proteomic research due to its non-invasive nature and its high concentration of protein/peptides, as well as the assumption that blood reflects the pathophysiological state of several organs. Biofluids such as urine and CSF are not the most desirable samples for proteomics because they contain a lower protein/peptide concentration (31). In addition, a complicated collection process is a hindrance in obtaining a reasonable amount of CSF sample (31).
Although the technicalities of sample collection, management and storage are known to be of vital importance to keep the composition and quality of the sample to be reproducible and reliable, there is no commonly accepted standardization protocol for bio-sampling procedures. Variables, such as storage times; temperatures and number of freeze-thaw cycles; removal of additives, such as heparin to prevent clotting; as well as the consumables, such as collection and processing tubes, are important parameters to be considered in order to avoid differences in protein composition among samples (31, 32). Bio-sampling optimization and standardization are essential steps to improve reproducibility for accurate correlations among different studies (33).
Proteomics has become a feasible and a promising approach with the advancements in MS methodologies. MS/MS innovations and possible combinations are constantly under improvement, and nowadays, it has become the gold standard for any kind of proteomic studies. Furthermore, high-resolution mass spectrometers have been recently adapted for high-throughput proteomics (34). MS/MS has a high impact in lowering sample complexity by the isolation of precursor ions through a mass filter, as well as their fragmentation and further detection by high-resolution mass analyzers (35). Moreover, for each of these steps, technologies have been developed to identify and distinguish peptides more accurately, with a better resolution, coverage and reproducibility. Also, computer tools have been under constant development to improve the analysis of the complex outcome data (Table 2). In order to achieve a more accurate protein identification, three main approaches have been described: bottom–up (BU), top–down (TD) and, more recently, middle–down (MD) (Figure 2).

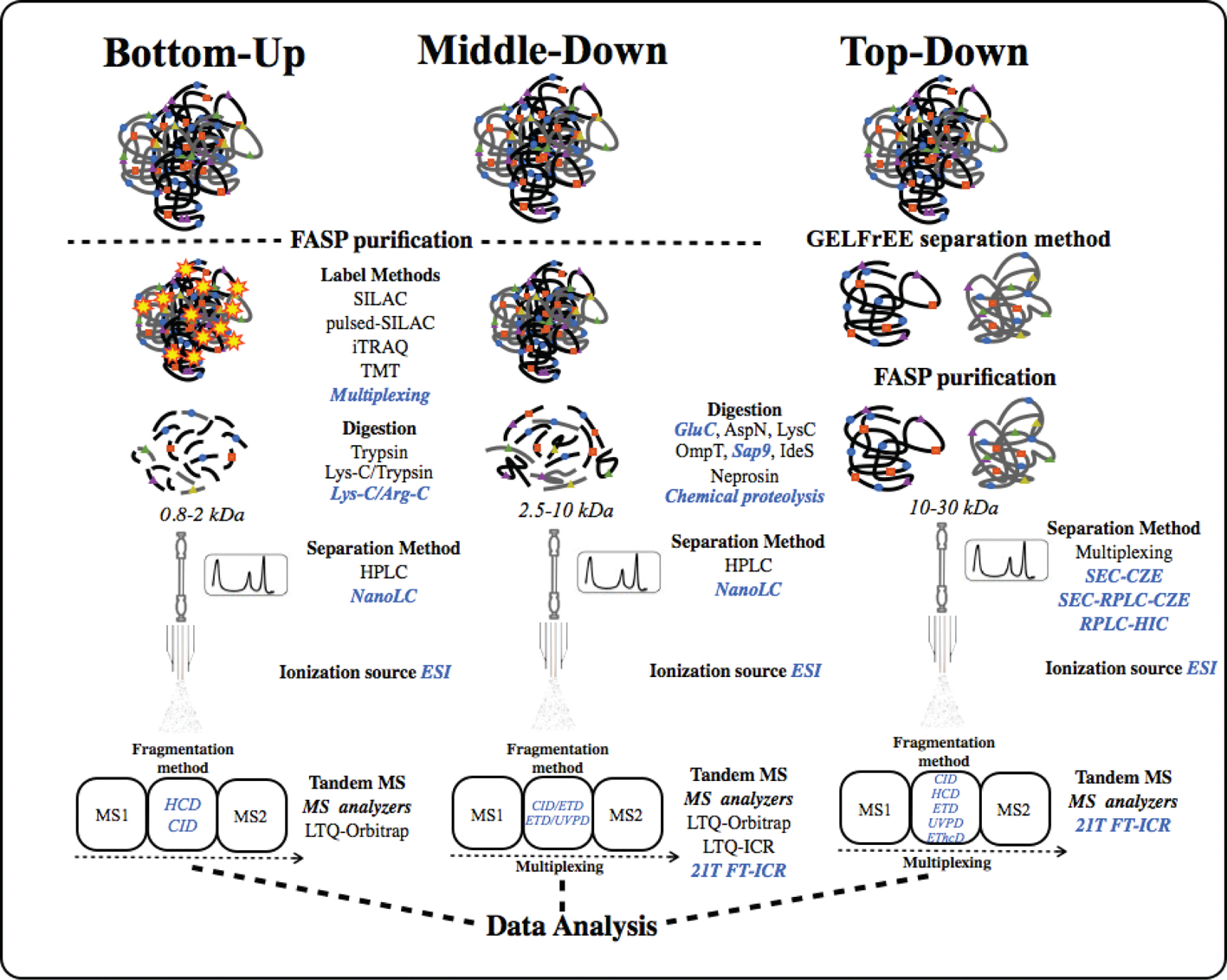

Figure 2 Bottom–up, middle–down and top–down proteomic high-throughput approaches. A general view of each of the approaches and the essential steps to follow are shown from top to bottom. Up-to-date tools, methodologies and techniques most commonly and successfully applied for high-throughput proteomic analyses are highlighted in blue for each of the approaches.
TABLE 2 Data resources and typical software solutions used in MS protein assignments, proteomics workflows, downstream analysis, data repositories and functional analyses
Name |
Scope |
URL |
---|---|---|
Reference databases | ||
UniProt/SwissProt | Proteome assemblies | https://www.uniprot.org |
RefSEQ | Genome, transcriptome and proteome assemblies | https://www.ncbi.nlm.nih.gov/refseq/ |
Tandem mass spectra protein/peptide search engines | ||
SEQUEST, Comet | Cross-correlation-based scoring, commercial (SEQUEST), open source, free (Comet) | https://proteomicsresource.washington.edu/protocols06/sequest.php |
Mascot | Probability-based scoring, commercial | http://www.matrixscience.com/ |
X!Tandem | Statistical confidence (expectation value) scoring, pattern matching, open source | https://www.thegpm.org/tandem/ |
Andromeda | Probabilistic scoring model, open source | http://coxdocs.org/doku.php?id=maxquant:andromeda:start |
ProLuCID | Three-tier scoring system, binomial probability, cross-correlation calculated Z-score, open source | http://fields.scripps.edu/yates/wp/?page_id=17 |
Platforms, integrated pipelines | ||
Proteome Discoverer | Commercial, fully integrated solution for Thermo Fisher instruments, outputs protein/peptide lists, also works with other data formats | https://planetorbitrap.com/proteome-discoverer |
Progenesis QI | Commercial, integrated solution from Waters, outputs protein/peptide lists, also works with other data formats | http://www.nonlinear.com/progenesis/qi-for-proteomics/ |
ProteinPilot | Commercial, fully integrated solution for AB Sciex instruments, outputs protein/peptide lists, also works with other data formats | https://sciex.com/products/software/proteinpilot-software |
Integrated Proteomics Pipeline (IP2) | Commercial, uses the ProLuCID search engine, outputs protein/peptide lists, offers limited downstream analysis | http://www.integratedproteomics.com/products.html |
Trans-Proteomic Pipeline (TPP) | Modular open-source standardized data processing pipeline | http://tools.proteomecenter.org/wiki/index.php?title=Software:TPP |
PatternLab | Open-source raw MS file data processing, includes the Comet peptide search engine, Microsoft Windows specific | http://patternlabforproteomics.org/index.html |
MaxQuant | Open-source data processing workflow, includes Anromeda peptide search engine, Linux and Windows distributions | https://www.maxquant.org/ |
Skyline | Modular open-source standardized data processing pipeline, workflow editor, Microsoft Windows specific | https://skyline.ms/project/home/software/Skyline/begin.view |
OpenMS | Modular open-source standardized data processing pipeline, workflow editor, OS system independent | https://www.openms.de/ |
Taverna | Framework for biocomputational tools, workflow editor, open source, re-use of existing workflows, Java programming language based, web server application | https://taverna.incubator.apache.org/ |
Galaxy | Framework for biocomputational tools, workflow editor, open source, web server application | https://usegalaxy.org/ |
Data repositories | ||
PRoteomicsIDEntification database (PRIDE) | Protein and peptide identifications, post-translational modifications, raw data | http://www.ebi.ac.uk/pride/ |
PeptideAtlas | Library of identified peptides | http://www.peptideatlas.org |
Japan ProteOmeSTandard Repository/Database (jPOST) | Integrated proteome datasets | https://jpostdb.org/ |
MassIVE | Protein and peptide identifications | https://massive.ucsd.edu/ProteoSAFe/static/massive.jsp |
iProX | Proteomic datasets | https://www.iprox.org/ |
Panorama Public | Skyline processed data | https://panoramaweb.org/project/Panorama%20Public/begin.view? |
Open Proteomics Database (OPD) | Proteomic datasets | http://data.marcottelab.org/MSdata/OPD/ |
The Global Proteome Machine (GPM) | Metadata | http://gpmdb.thegpm.org/ |
Functional analysis resources | ||
Bioconductor/R | Statistical and graphical environment for analysis of high-throughput data | https://www.bioconductor.org/ |
MixOmics | Statistical package, visualization of analysis runs, requires the statistical software R | http://mixomics.org/ |
PANDA-view | Statistical analysis, data visualization, quantitative proteomics, requires the statistical software R but provides its own GUI, Microsoft Windows application | https://sourceforge.net/projects/panda-view/ |
Perseus | Post-analysis of MaxQuant data, data integration, statistical analysis, sample comparisons, Microsoft Windows application | http://coxdocs.org/doku.php?id=perseus:start |
InterPro | Protein families, domains and functional sites, | http://www.ebi.ac.uk/interpro/ |
Gene Ontology (GO) | Hierarchically clustered annotations of functional terms that describe the biological process, molecular function or cellular component | http://www.geneontology.org |
Database for Annotation, Visualisation, and Integrated Discovery (DAVID) | GO analysis, KEGG mapping, domain grouping, web application | https://david.ncifcrf.gov/ |
ClueGO | GO analysis, statistical analysis, hierarchical clustering, Cytoscape app | http://www.ici.upmc.fr/cluego/ |
ReviGO | GO term clustering, semantic analysis | http://revigo.irb.hr/ |
Kyoto Encyclopedia of Genes and Genomes (KEGG) | Pathway mapping, static maps | http://www.genome.jp/kegg/ |
ReactomeKnowledgeBase | Pathway mapping | http://www.reactome.org |
Ingenuity Pathway Knowledge Base (IPA) | Pathway mapping, data clustering, enrichment analysis | https://www.qiagenbioinformatics.com/products/ingenuity-pathway-analysis/ |
Wikipathways | Database of pathway maps | http://wikipathways.org/index.php/WikiPathways |
BioCyc Knowledge Library | Database, pathway mapping | http://biocyc.org/ |
RHEA | Biochemical reactions database | http://www.rhea-db.org |
Protein ANalysisTHrough Evolutionary Relationships (PANTHER) | Signaling pathways | http://www.pantherdb.org |
PathVisio | Pathway drawing and pathway analysis tool | https://www.pathvisio.org/ |
IMPaLA | Pathway analysis, web application | http://impala.molgen.mpg.de/ |
Molecular Interaction Database (IntAct) | Database, protein-protein interactions, protein-compound interactions | http://www.ebi.ac.uk/intact |
Molecular Interaction Database (MINT) | Protein–protein interactions | http://mint.bio.uniroma2.it/ |
Search Tool for the Retrieval of Interacting Genes/Proteins (STRING) | Protein–protein interactions | http://string-db.org |
JasparDB | Transcription factors and regulatory sites | http://api.bioinfo.no/wsdl/JasparDB.wsdl |
Online Mendelian Inheritance in Man (OMIM) | Online catalogue of human genes and genetic disorders | https://www.omim.org/ |
DisGeNET | Human gene-disease associations, animal models, database, web-query, Ctoscape implementation | http://www.disgenet.org/ |
Babelomics | Correlations, clustering, ontologies, pathways, heatmaps | http://www.babelomics.org/ |
Cytoscape | Network analysis environment, graph drawing | https://cytoscape.org/ |
In contrast to TD and MD proteomics analysis, for BU data analysis, a deconvolution step is not required when implementing ESI, due to the rare generation of double- and triple-charged fragment ions (36). Mass spectra raw data are commonly processed by Proteome Discoverer or MaxQuant platforms using several search engines, such as Sequest, Mascot, Andromeda, X!Tandem and COMET, usually against UniProt databases (37–39). MaxQuant software can also determine protein quantitation and estimate the error of PTM false localization. For downstream correlation and clustering analysis, the identified proteins are commonly processed in the Perseus platform (38, 40, 41). To reduce data complexity, principal component analysis (PCA) has been the method of choice, and also to identify the relatedness of the differentially expressed proteins within and among samples (39, 41). Moreover, to interpret the potential function of the datasets obtained, the DAVID platform is commonly used to enrich them with Gene Ontology terms, KEGG pathway information and InterPro protein domains (39, 42). Additionally, constructed networks are commonly visualized in Cytoscape, and in order to identify functional and physical associations among mRNA and protein data, the STRING database is used (43). All MS data are usually deposited in the ProteomeXchange Consortium via the PRIDE partner repository for sharing, general availability and further study (44, 45).
In TD data analysis, Proteome Discoverer is commonly used to process raw data files, and through its ProSight tools, as well as through MascotTD, identification and characterization of intact proteins can be achieved (46, 47). A database search using ProSight against specific databases (UniProt, SwissProt and RefSEQ) leads to top–down data interpretation and also identifies PTMs within a protein sample (48, 49). Furthermore, deconvolution is crucial for data interpretation, and it is commonly achieved through Xtract, MS-Deconv and YADA (within ProLuCID), among other tools (50). Additionally, in order to give meaning to the identified intact proteins/proteoforms and analyze them more deeply, an integrated network approach can be followed. As an example, “Proteoform” Suite has been recently used for dataset identification and proteoform integration. By assessing its function using gene ontology (GO) analysis, it also enables the visualization of association and abundance within networks through Cytoscape (51, 52). Although top–down proteomics is still rapidly evolving, the complexity of the analysis and technological issues remain, preventing it to be a typical method to follow when studying high-throughput PTMs.
MD approaches are based mainly on ESI, where multiple peaks of charged fragment ions are generated. Therefore, it is essential to perform deconvolution prior to MS spectra interpretation. Several tools have been described for this purpose, such as Xtract and YADA (within ProLuCID) or Proteome Discoverer (45, 53). The subsequent dataset analysis and database searches are usually performed using Mascot or Sequest (44, 45, 53). Moreover, new software tools are under development to filter Mascot and Sequest results, such as isoScale, where Mascot results are imported and peptides with confidently assigned combinatorial PTMs are identified, which means that all the modifications are uniquely validated by ions that determine and confirm the localization of a PTM site (45, 53, 54). Since MD proteomics research has a considerable impact on PTM research, specific software tools have been created to analyze PTMs and relevant data. Among these tools are the previously mentioned isoScale software and the Skyline software (55). MD proteomics is still lacking established and standardized tools suitable for data interpretation, and although algorithms and software tools remain under constant development and improvement, this issue is mainly overcome by using TD proteomics tools instead. However, due to a different focus (no proteolytic peptides), such MD analyses are prone to error.
The general process of data analysis, shown in Figure 3, involves procedures of raw data conversion, deconvolution, normalization, spectral identification, peak alignments, validation, statistical modeling, peptide identification, abundance measurements, protein inference, data storage (raw and processed), data visualization, eventual further data analysis steps such as dataset comparisons and ultimately deposition of data into public data repositories.

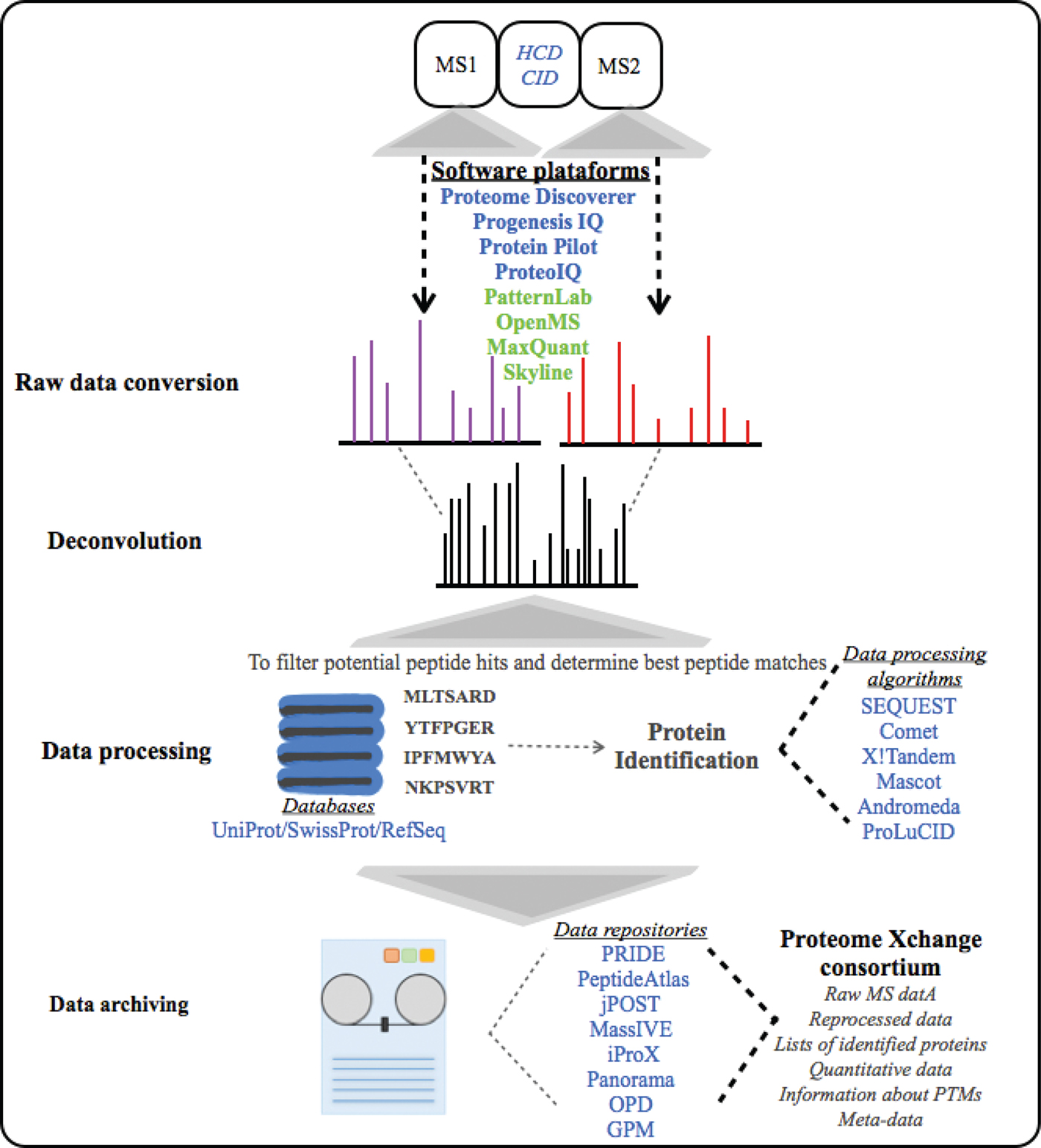

Figure 3 Data processing workflow from raw MS spectra to identified biomolecules. Raw data conversion, deconvolution, data processing and data archiving are the main steps illustrated. The most popular tools within each of them are highlighted in blue. Commercial (blue) and open-source integrated software platforms (green) for the analysis of proteomic data are included. They all encompass modules to manage raw spectral file data, peptide identification using search engines, clustering and sample comparison, identification of PTMs, quantification, statistical analysis and visualization tools. The most common data processing algorithms, data bases and data repositories to release data into the public domain are also shown.
A vast amount of computational solutions have been developed to handle and analyze proteomic MS data, ranging in thousands of applications, add-ons and scripts, covering every single aspect of data conversion, deconvolution, normalization and alignment, as listed in website (https://omictools.com/proteomics-category). Currently, the main problem is to find the most appropriate and suitable analysis tool rather than to find a way to analyze the experimental MS spectra. A good overview of the software landscape of such tools can be found in Ref. (56), which also poignantly describes the incompatibility issues when faced with such a huge array of computational tools. Therefore, a focused view of the most general, yet commonly used software solutions is summarized in Table 2.
The exuberance of programs and applied algorithms in data processing led to a fragmented landscape of often incompatible steps needed to perform MS data analysis, and the obvious solution was to integrate these various steps into one single workstream implemented in platform tools. A considerable amount of reviews of existing platform software programs are available (57–59). Common amongst many platform solutions is that they usually have one or more of the aforementioned protein/peptide search engines embedded in the workflow. All major MS system manufacturers also provide integrated software solutions for the analysis of proteomic data and specific applications, thereby eliminating the need of having separate software solutions for data acquisition and data processing; however, it needs to be noted that MS instrument control might still require vendor-specific applications. As a consequence, data formats of raw MS data are specific for the manufacturer of the MS equipment, and inter-operability of software solutions is severely hampered and sometimes impossible. This lock-in has understandable commercial reasons, but quite a number of open-source solutions have also been made available over the years. One of the main differences between commercial and open-source solutions is user friendliness, where open-source programs might require specialist computing skills in order to implement the various components of the software programs. However, in recent developments, more user-friendly platforms have been generated that integrate these open-source solutions or algorithms. Therefore, most of these open-source applications feature a modular design, where individual algorithms and procedures are combined to form the entire workflow.
One of the key aspects in proteomic research is the downstream analysis, whereby lists of molecules are interrogated using a variety of software tools in order to put biological meaning into such lists, extract statistically evaluated parameters or match them against other known assemblies (Figure 4). These steps generally involve the use of other databases that hold specific information for each molecule, such as functionality, disease association or pathway data. More than 300 software tools to accomplish various aspects are listed at this website (https://www.ms-utils.org/) alone, and thousands more have been developed and used in proteomics research over the last 20 years. Table 2 lists some of the most common tools used in proteomic downstream analysis.

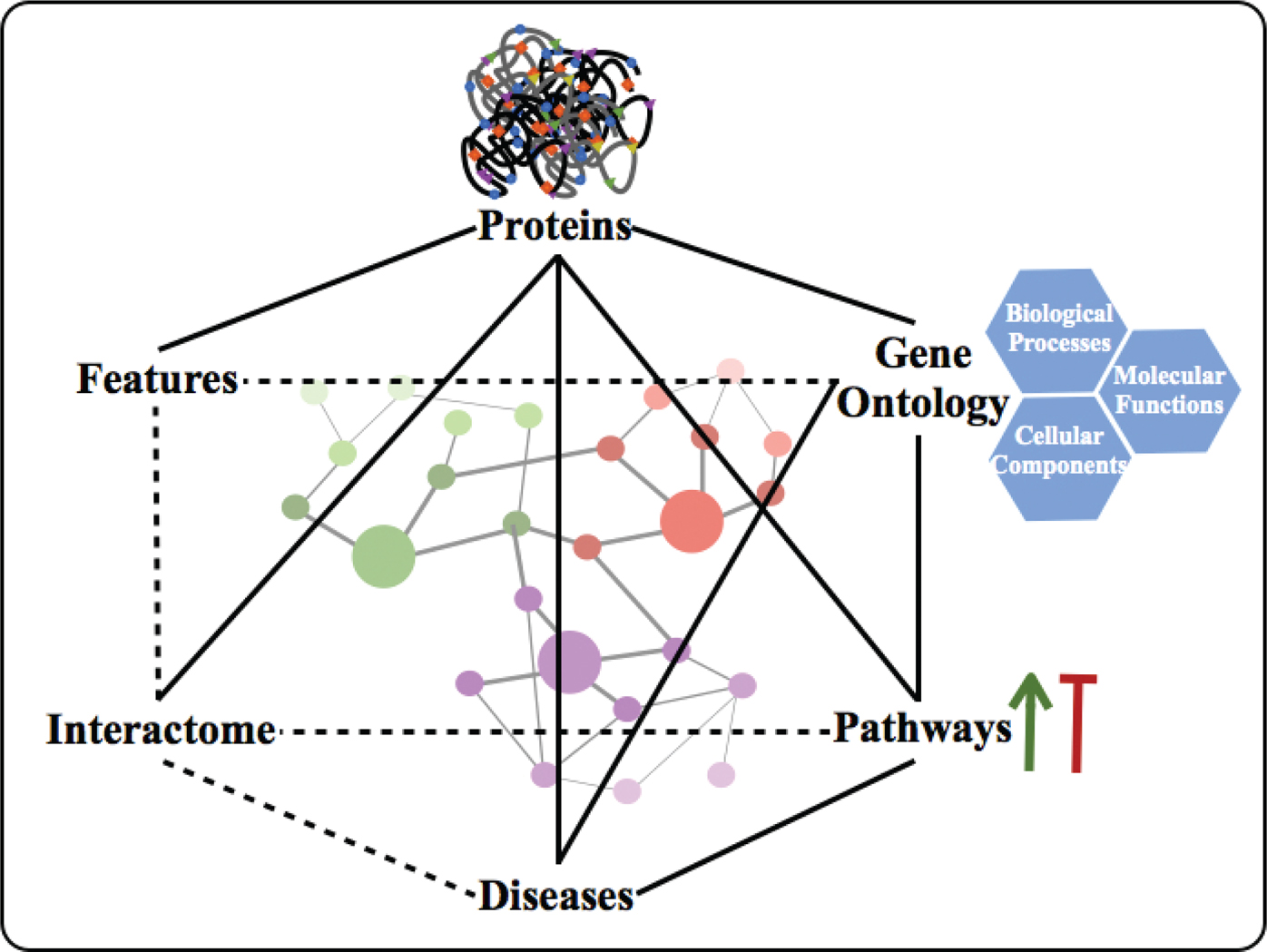

Figure 4 Downstream data analysis in proteomics research and relationships of analysis scopes. Full lines depict direct information flow between the analysis or data types, and dashed lines depict indirect associations.
The large-scale nature of proteomic data, which reflects not only the biological factors but also the technical and experimental factors, often requires algorithms to reduce the dimensionality. Statistical tools are an essential part in the analysis of such data, ranging from outlier detection methods and imputation of missing data to expression profiling and group comparisons, including networks and protein cluster detection (60). A vast number of these procedures have been implemented as scripts in the statistical open-source tool R, or in one of its derivatives such as Bioconductor, where a number of packages were written specifically for use in proteomics applications and data analysis (61). A basic first step in the analysis of large MS-derived datasets can also involve a possible enrichment of specific protein families or domains. The InterPro database is an integrated documentation resource for protein domains, families and functional sites, incorporating other databases with similar scope, namely ProDom, PROSITE, PRINTS and Pfam (62). Analysis of the protein landscape using the InterPro resource is generally a practical and efficient way to interrogate proteomic datasets.
One of the most prominent and heavily used data resource for downstream analysis is the GO database, whose aim is to generate a dynamic, yet controlled vocabulary that can be used in all eukaryotes as the knowledge of gene and protein roles in cells is growing and constantly changing (63). The database unifies similar prior approaches from other databases and describes molecules in terms of their involvement in biological processes, their molecular function and their sub-cellular location in a hierarchical way. Originally, this process of annotating functionality tags to molecules was done manually, but nowadays it is performed mainly through computational tools. There are many software solutions that make use of the GO database, and surprisingly, depending on the algorithm used in GO-analysis, the results can vary drastically (64). Therefore, one needs to carefully evaluate which tools to use and which are trustworthy in their analysis outcomes.
Other high-quality, manually curated databases that extend the knowledge of molecular functionalities are comprised of pathway databases, and more than 600 databases within this scope are currently listed at this website (http://pathguide.org). Pathways, such as signaling and metabolic cascades, can be used to physically link proteins in a concatenated manner to a series of events with a measurable outcome, thereby reducing the complexity of the protein-centric view to a more meaningful one through identification of functional biological processes (65). They can also be used to bridge or integrate data from one omics stream such as proteomics and another like metabolomics. Additionally, many signaling cascades, in particular gene-activation pathways, terminate at the point where gene expression is induced or repressed, thereby breaking the information flow from one signaling event to another via an intermediary step of gene modulation. In order to fill this gap, it is necessary to identify potential transcription factors, their DNA binding sites and the targeted genes (66). Such information can be used for both down-stream pathway mapping and up-stream analysis, thereby enabling the exploration of causes leading to the observed proteomic profile changes, as well as the consequences of such changes.
An additional aspect to consider is that most proteins do not act alone and independently, but rather as an assembly of multiple proteins to perform specific actions by forming transient or stable complexes. Examples are scaffolders that bring proteins into close proximity in protein signaling cascades, protein regulatory networks and structural components. Based on the composition of such complexes, a specific protein might be involved in a function that is fundamentally different from the same molecule participating in an assemblage with other proteins. Therefore, in order to gain a better understanding of the biological data from MS-derived experimentation, the use of protein–protein interaction databases can be particularly helpful (67). Most protein–protein interaction databases contain literature-based interaction data that were manually curated and assessed, whereas some resources use literature mining tools to populate the database, and their data are therefore not necessarily based on experimental observations, but rather predicted interactions.
Further contextualization of proteomic data can also be achieved by interrogating disease databases, where disease terms are linked to a collection of associated genes derived from the literature. Two such examples are the Online Mendelian Inheritance in Man (OMIM) (68) and DisGeNET (69). Both are expert-curated databases that analyze text-mined data to establish a link between phenotypes and genes and both have their own web interface to query the databases. While OMIM and its derivative table of gene-disease associations termed MorbidMap are only covering human genes and disease conditions, DisGeNET additionally includes data from animal disease models. Although they are comparable in scope, they both do not use the exact same medical term dictionary, which can cause problems comparing and fusing results using both databases
The diverse nature of biological questions to be answered by proteomics can make it difficult for non-experts in data analysis to make the right selection of analysis tools, and together with specific requirements such as R scripting or programming skills, it can become a daunting endeavor. Yet, new tools are emerging that bring together various data downstream processing procedures most commonly used in omics research such as Babelomics and Cytoscape that will help researchers to put meaning into large-scale datasets, and some of the tools described before have also been integrated into these software solutions as well. Babelomics, although in principle more useful in gene and array analysis, can also be used in the functional characterization of proteomic datasets and other downstream analysis steps (70). It includes a comprehensive suite of modules to perform differential expression profiling, enrichment analysis, GO and pathway analysis, text mining and protein interaction analysis. It is implemented as a web-based application and is freely available and accessible. Cytoscape is an open-source and freely available software framework for interaction network analysis and is offered as a desktop application or a web-plugin (71). In itself, it provides basic functionalities such as graph drawing and network layout and construction and enables linking to large databases. It is extendable by providing a run-time environment for other data analysis plug-ins. Currently, approximately 350 additional apps are available.
MS, and in particular the LC-MS/MS shotgun proteomics workflow, is widely used to identify and quantify sample peptides and proteins. The methodology, however, still poses several challenges for large-scale use, such as the MS-manufacturer dependent diverse raw data file formats, the relatively large false-positive peptide assignment rate and the disconnect between observed peptides and originating sample proteins. There are still quite a number of issues to be resolved concerning proteomics in general, such as missing data or data depth, where the sensitivity of the mass spectrometer is insufficient to reliably detect low-abundance molecules, or where the very nature of the molecules under investigation prohibits certain applications, which is commonly encountered with transmembrane spanning proteins. Problems that arise due to masking effects, particularly encountered with high-abundance molecules that raise the detection threshold, are more of a technical issue that can be overcome with improvement of methodologies, whereas database drift, which is associated with underlying reference databases where accession numbers are lost over time due to various reasons, can pose real problems in the long term.
While many elegant software solutions of data acquisition to spectral data analysis exist, the field is rather fragmented and disjointed when it comes to downstream data analysis such as integrating or merging results derived from pathway mapping, terminology clustering and disease analysis. Yet, tremendous efforts have already begun to pay off in collating and merging individual applications and algorithms into a more cohesive framework. One such framework, the Pan-omics Analysis Database (PADB) initiative, has been in existence for more than 15 years and has been successfully used to address proteomic and genomic large-scale data analysis in various disease areas (72). Another obvious solution is the reuse of existing pipelines and workflows generated in other omics-streams, in particular from the genomics and transcriptomics fields. These tools can be helpful in many ways in proteomics data analysis, yet they might also confuse the picture of available tools and analysis workstreams.
Nevertheless, it is very apparent that since proteomics entered the mainstream and has become an accepted standard in large-scale biological investigations, many breakthroughs were achieved that were unthinkable before. A very new view of the small-scale world has opened and, although the most obvious impact at that moment was how little we understand in terms of molecular flux and interplay, enabled us to start interrogating biological processes on an unprecedented scale. In particular, disease analysis, understanding of abnormal phenotypes and how to pharmacologically interfere with the protein landscape at various stages of disease progression, has started to bear fruit and will continue to do so in the foreseeable future.
