Dongmei Li
Clinical and Translational Science Institute, University of Rochester School of Medicine and Dentistry, Rochester, NY, USA
Abstract: This chapter will review the statistical methods used in RNA sequencing data analysis, including bulk RNA sequencing and single-cell RNA sequencing. RNA sequencing data analysis has been widely used in biomedical and biological research to identify genes associated with certain conditions or diseases. Many statistical methods have been proposed to analyze bulk and single-cell RNA sequencing data. Several studies have compared the performance of different statistical methods for RNA sequencing data analysis through simulation studies and real data evaluations. This chapter will summarize the statistical methods and the evaluation results for comparing different statistical analysis methods used for RNA sequencing data analysis. It will cover the statistical models, model assumptions, and challenges encountered in the RNA sequencing data analysis. It is hoped that this chapter will help researchers learn more about the statistical perspective of the RNA sequencing data analysis and enable them to choose appropriate statistical analysis methods for their own RNA sequencing data analysis.
Keywords: bulk RNA sequencing; data analysis; differential analysis; RNA sequencing; single-cell RNA sequencing
Author for correspondence: Dongmei Li, Clinical and Translational Science Institute, University of Rochester School of Medicine and Dentistry, 265 Crittenden Boulevard CU 420708, Rochester, NY, USA. Email: Dongmei_Li@urmc.rochester.edu
Doi: http://dx.doi.org/10.15586/computationalbiology.2019.ch6
In: Computational Biology. Holger Husi (Editor), Codon Publications, Brisbane, Australia. ISBN: 978-0-9944381-9-5; Doi: http://dx.doi.org/10.15586/computationalbiology.2019
Copyright: The Authors.
Licence: This open access article is licensed under Creative Commons Attribution 4.0 International (CC BY 4.0). https://creativecommons.org/licenses/by-nc/4.0/
RNA sequencing, including bulk RNA sequencing and single-cell RNA sequencing, is a popular technology used in biological and biomedical fields (1, 2). Figure 1 shows the analysis flow of RNA sequencing data. In RNA sequencing experiments, RNAs of interest need to be extracted first from the cells and then converted to complementary DNA (cDNA) to be sequenced by high-throughput platforms. Next, the sequenced short cDNA fragments are mapped to a genome or a transcriptome, and the summarized count data are derived to estimate the expression levels for each gene or isoform (3–5). Finally, statistical methods or machine learning methods are applied to the summarized count data after normalization to evaluate transcription levels under different biological and biomedical conditions, to discover novel transcripts and isoforms, and to detect alternative splicing and splice junctions (6). The single-cell RNA sequencing, in addition, allows to understand gene expression pattern within the cell; to identify cell heterogeneity, cell population, and sub-population; and to examine the effects of low copy mRNA distribution and transcriptional regulation (7). Pathway analysis and gene enrichment analysis are usually performed further on selected significant genes after differential analysis (8, 9).

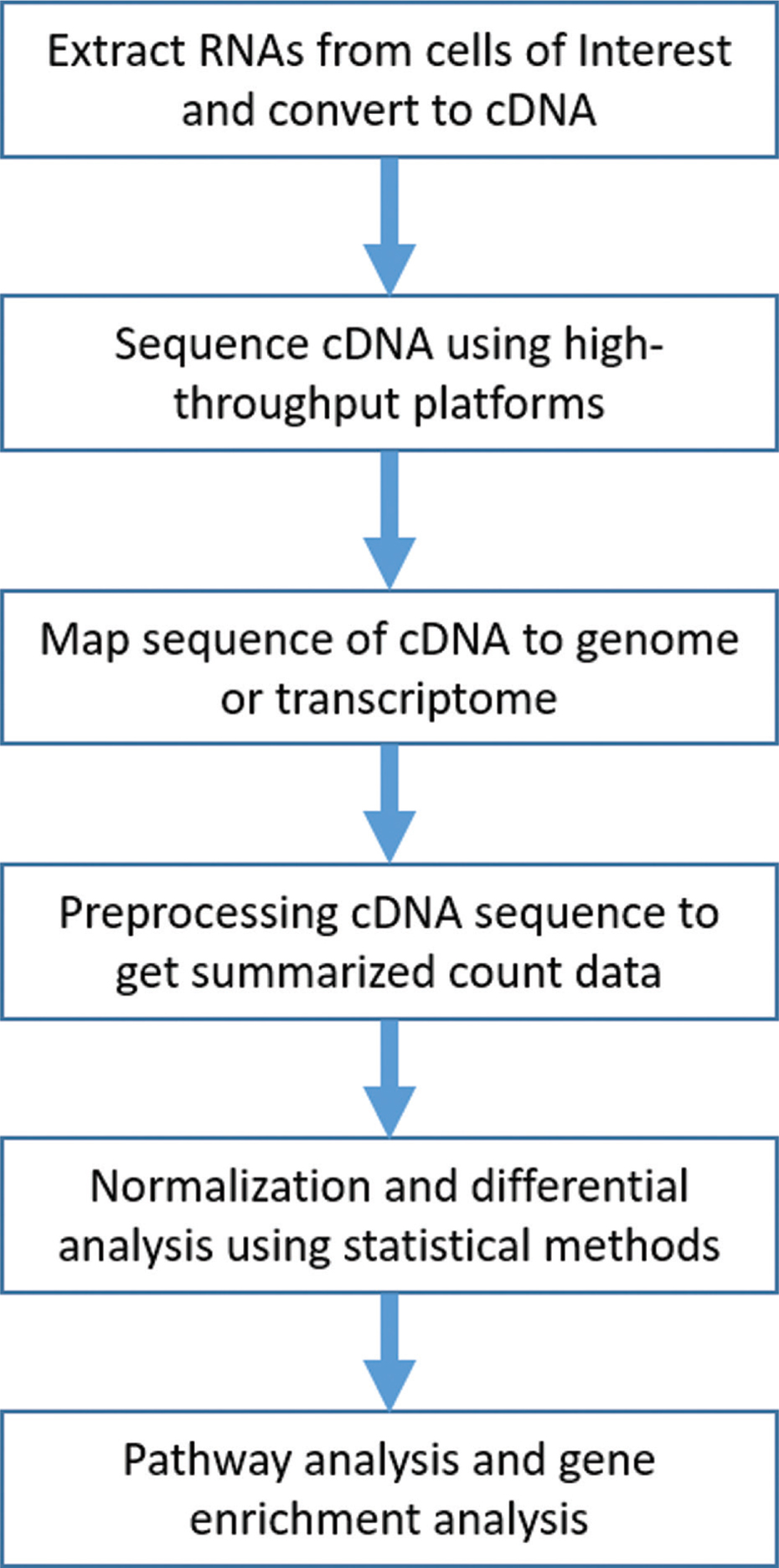

Figure 1 Analysis flow of RNA sequencing data.
RNA sequencing has been widely used to study the mechanism of complex disease, identify potential biomarkers for clinical indications and infer gene pathways (10–12). Similar to bulk RNA sequencing, single-cell RNA sequencing has been applied to identify cell populations, infer gene regulatory networks, and track different cell lineages (13–15). Single-cell RNA sequencing also has the potential to identify drug-resistant clones, assist non-invasive biopsy diagnosis, and infer stem cell regulatory networks (16–18).
As the sequencing technology advances rapidly, the cost of both bulk RNA sequencing and single-cell RNA sequencing also dramatically decreased (18, 19). With this massive amount of RNA sequencing data now available, it is very challenging to obtain accurate information from the data and further transform this information into useful knowledge (20, 21). Differential gene expression analysis also has its own challenges. The distribution of read coverage might be different along the genome attributed to the variation of genome compositions. Meanwhile, larger genes have more mapped reads than smaller genes although their expression levels might be the same. Furthermore, many biological variations sometimes cannot be accounted for in the data analysis due to relatively small sample sizes for each experimental condition. This chapter focuses on the statistical analysis methods used for differential analysis in both bulk RNA sequencing and single-cell RNA sequencing data. Commonly used statistical methods, their model assumptions, and tests for RNA sequencing differential analysis are discussed (Table 1). The simulation results of comparing different statistical methods and challenges encountered in the data analysis are summarized. Recommendations on the selection of appropriate statistical methods for RNA sequencing differential analysis are also provided.
TABLE 1 Summary of gene differential expression analysis methods for bulk RNA and single-cell RNA sequencing data
Bulk RNA sequencing data |
|||
---|---|---|---|
Method |
Read count distribution assumption/model |
Differential analysis test |
Reference |
Cuffdiff and Cuffdiff2 | Similar to t-distribution on log-transformed data | t-test analogical method | (22, 23) |
edgeR | Negative binomial distribution | Exact test analogous to Fisher’s exact test or likelihood ratio test | (24, 25) |
DESeq | Negative binomial distribution | Exact test analogous to Fisher’s exact test | (26) |
DESeq2 | Negative binomial distribution | Wald test | (27) |
baySeq | Negative binomial distribution | Posterior probability through Bayesian approach | (28) |
EBSeq | Negative binomial-beta empirical Bayes model | Posterior probability through Bayesian approach | (29) |
SAMseq | Non-parametric method | Wilcoxon rank statistics based permutation test | (30) |
NOIseq | Non-parametric method | Corresponding logarithm of fold change and absolute expression differences have a high probability than noise values | (31, 32) |
voom | Similar to t-distribution with empirical Bayes approach | Moderated t-test | (33) |
Sleuth | Additive response error model | Likelihood ratio test | (34) |
Single-cell RNA sequencing data | |||
Method | Read count distribution assumption/model | Differential analysis test | Reference |
SCDE | Two-component mixture model with Poisson and negative binomial distributions | Posterior probability of being differentially expressed through Bayesian approach | (40) |
MAST | Hurdle model with indicator variable and logistic regression | Differences in summarized regression coefficients between groups through bootstrap method | (41) |
scDD | Bayesian modeling approach | Bayes factor score through permutation method | (42) |
DEsingle | zero-inflated negative binomial model | Likelihood ratio test | (43) |
SigEMD | Logistic regression and Wald test for selecting genes with zero count and then impute zero counts using the Lasso regression model | Non-parametric test based on Earth Mover’s Distance (EMD) through permutation method | (44) |
SINCERA | Exact or normal distribution | Welch’s t-test or Wilcoxon rank sum test | (46) |
D3E | Discrete distribution | Cramér-von Mises test, Kolmogorov–Smirnov test or likelihood ratio test | (47) |
EMDomics | Distribution functions are different | EMD-based permutation test | (48) |
Monocle2 | Generalized linear model approach | Likelihood ratio test | (45, 51) |
Linnorm | t-distribution with empirical Bayes approach | Moderated t-test | (49) |
Discriminative Learning | Multiple logistic regression model | Likelihood ratio test | (50) |
Current popular methods for bulk RNA-seq differential analysis methods could be classified into four categories based on the type of statistical methods used for differential analysis: (i) t-test analogical methods (Cuffdiff and Cuffdiff2) (22, 23), (ii) Poisson or negative binomial model-based methods (edgeR, DESeq, DESeq2, baySeq, EBSeq) (24–29), (iii) non-parametric methods (SAMseq and NOIseq) (30–32), and (iv) linear models (voom and sleuth) (33, 34).
Both the Cuffdiff and Cuffdiff2 methods use the t-test analogical method to test the changes in gene expression levels between different groups (22, 23). The mean gene expression level for each gene is determined using the maximum likelihood estimating method for different groups. Then, the mean difference of the logarithm-transformed gene expression levels of the estimated gene expression levels is used as the numerator in the t-test analogical method, and the estimated variance of the mean differences in logarithm is estimated using the delta method. The power of the t-test analogical method in Cuffdiff and Cuffdiff2 depends on the length of the transcripts tested as longer transcripts yield more reads. Thus, the results from Cuffdiff and Cuffdiff2 are biased toward a higher probability of identifying longer transcripts or genes. The major differences between Cuffdiff and Cuffdiff2 are methods used to extrapolate the estimated gene expression levels. Cuffdiff determines the estimated gene expression levels using the maximum likelihood method with the Bayesian approach and Poisson distribution assumption, while the Cuffdiff2 method improves the estimation of gene expression levels through modeling cross-replicate variability in transcript-level counts and adopts the negative binomial distribution assumption for those estimated counts.
For each gene in each sample, edgeR assumes that the summarized count follows a negative binomial distribution with mean equal to the multiplication of library size and relative abundance (the gene expression levels), and the variance for each gene is a function of the mean (24, 25). The genewise dispersion is estimated using a conditional maximum likelihood method through the empirical Bayes approach. For gene differential expression testing, edgeR uses either an exact test analogous to Fisher’s exact test with consideration of overdispersion or a likelihood ratio test within a negative binomial generalized log-linear model framework.
DESeq uses a modified negative binomial model implemented in edgeR (26). DESeq estimates the variance based on the relative abundance of the gene through a data-driven approach. DESeq tests gene expression differences between groups using an exact test analogous to Fisher’s exact test with test statistics as the sum of total count within each group and across groups. DESeq2 takes a generalized linear model approach to model the group differences in relative abundance, which can also accommodate more complex study designs (27). DESeq2 assumes that the dispersion follows a log normal prior distribution with means being a function of normalized counts for each gene. DESeq2 uses an empirical Bayes approach to integrate the dispersion and fold change estimates and tests the gene differential expression using the Wald test.
baySeq assumes that the summarized count data follow a negative binomial distribution and use the whole dataset to obtain a prior distribution for the estimated model parameters (28). The data dispersion is approximated using the maximum likelihood method. The baySeq method uses a posterior probability of non-differential expression between groups and a Bayesian FDR estimate to select significantly differentially expressed genes between groups.
EBSeq assumes that within each biological condition, the expected count from each gene follows a negative binomial distribution (29). Within each group, the mean of gene expressions is a function of the variance of gene expressions. The variance of gene expressions follows a beta distribution with the two parameters estimated using the expectation-maximization (EM) algorithm. For the gene expression differential tests between groups, EBSeq obtains a posterior probability of genes being differentially expressed between groups through Bayes’ rule using the EM algorithm within the negative binomial-beta empirical Bayes model framework. EBSeq also uses a Bayesian FDR estimate to assist the selection of significantly differentially expressed genes.
SAMseq is a non-parametric method proposed for differential gene expression testing between groups (30). For between-group comparisons, SAMseq uses the two-sample Wilcoxon rank statistics. SAMseq uses a re-sampling procedure to account for different sequencing depths in the differential data analysis. The null distribution of the Wilcoxon rank statistic and FDR are estimated using the permutation method.
NOIseq is also a non-parametric method for testing differential gene expression between groups through ratio of fold change and absolute expression differences (31, 32). NOIseq uses sequencing-depth corrected and normalized RNA sequencing count data and models the noise distribution by contrasting the logarithm of fold change and absolute expression differences between groups. NOIseq considers a gene to be differentially expressed between groups if the corresponding logarithm of fold change and absolute expression difference values have a high probability to be higher than noise values.
voom takes a linear modeling strategy to model the count data (33). It determines the mean–variance relationship based on the delta rule and Taylor’s theorem and obtains the estimate for variance through the piecewise linear function defined by the fitted LOWESS curve. voom also generates a weight for each observation and uses the estimated variance and weight as the input in the limma empirical Bayes analysis pipeline. The gene expression differential analysis between groups is tested using the moderated t-statistics.
Sleuth uses an additive response error model with the total between-sample variability being an additive of biological variance and inferential variance (34). The biological variance is composed of between-sample variation and variation during the library preparation process. The inferential variance includes variation due to random sequencing of fragments and variation coming from computational inference procedures. Sleuth tests gene differential expression between groups using the likelihood ratio test.
In 2013, Soneson conducted an extensive comparison of 11 methods used for bulk RNA sequencing differential analysis through both simulation studies and real RNA sequencing data examples (35). The methods Soneson compared include edgeR, DESeq, baySeq, EBSeq, SAMseq, and voom, described before. The comparison of those methods showed that all methods had low power with small sample sizes, and there was no optimal method applicable for all conditions. voom performed well under many conditions and was robust to outliers and computationally efficient. However, voom performed worse when the variances were unequal between groups. SAMseq requires larger sample sizes (at least 4–5 samples per group) to detect significantly differentially expressed genes. The comparison also found that DESeq was often overly conservative, and edgeR was too liberal with a larger number of false positives. Both baySeq and EBSeq were computationally less efficient. baySeq showed highly variable results when significant genes were all modulated in one direction, and the results were largely affected by outliers. EBseq had a poor false discovery rate (FDR) control in most situations and was relatively robust to outliers.
Previous experimental validation of selected differentially expressed genes from multiple RNA sequencing differential expression analysis methods (Cuffdiff2, edgeR, DESeq2) found a high FDR of the Cuffdiff2 method and high false negative rates of the DESeq2 method (36). The edgeR method had relatively higher sensitivity and specificity than the Cuffdiff2 and DESeq2 methods. In addition, the experimental validation also showed that pooled samples in the experiments suffered from lower positive predictive values than individual samples.
Using results from qRT-PCR as the gold standard, an extended review of eight RNA sequencing differential analysis methods (baySeq, DESeq, DESeq2, EBSeq, edgeR, voom, NOIseq, and SAMseq) was conducted to determine their precision, accuracy, and sensitivity (37). By comparing the results from qRT-PCR and selected differentially expressed genes from each of the eight methods, it was found that voom, NOIseq, and DESeq2 showed more consistent results than the other methods. In addition, the significantly differentially expressed genes selected by consensus of baySeq, DESeq2, voom, and NOISeq had the best performance indicators on precision, accuracy, and sensitivity. Furthermore, the investigation also found that mapping methods in the pre-processing step of RNA sequencing data analysis had minimal effect on downstream RNA sequencing gene differential analysis, given that a reference genome for the RNA sequencing data was available.
A recent investigation of six RNA sequencing differential analysis methods (DESeq, DESeq2, edgeR, SAMseq, EBSeq, and voom) focused on their stability measured by the area under the correlation curve (38). Among the explored factors that have a potential to affect the stability of RNA sequencing differential analysis methods, fold changes of truly differentially expressed genes and their variability seem largely to affect the stability of those methods. Larger sample size is associated with increased stability, and a sample size of 10 or larger in each group results in a plateau on stability. DESeq2 and edgeR were less likely to be affected by outliers on their stability measurements.
Single-cell RNA sequencing is becoming popular in recent years to better understand the stochastic process and gene regulations in a granular resolution (13, 15, 16, 39). The commonly used gene differential expression analysis in single-cell RNA sequencing can be classified into two categories, with one category modeling excess zeros (SCDE, MAST, scDD, DEsingle, and SigEMD) (40–44) and the other category without modeling the excess zeros in the single-cell RNA sequencing data (DESeq2, SINCERA, D3E, EMDomics, Monocle2, Linnorm, and Discriminative Learning) (12, 27, 45–50). DESeq2 is a popular method used for bulk RNA sequencing data analysis, which is also often used for analyzing single-cell RNA sequencing data for testing of differential expression between groups.
SCDE uses a two-component mixture model for the gene expression data from single-cell RNA sequencing experiments (40). The excess zero part (dropouts) is modeled by a Poisson distribution with user-specified thresholds for the mean (such as 0.1). The expressed genes are modeled by a negative binomial distribution technique. For gene differential expression analysis between groups, SCDE takes a Bayesian approach to obtain the posterior probability of a gene being expressed in one group and then uses a fold expression difference between groups as the test statistics with empirical P-values calculated to select differentially expressed genes.
MAST uses a hurdle model approach for single-cell RNA sequencing gene differential expression analysis (41). MAST assumes conditional independence between expression rate and expression levels for each gene. MAST uses an indicator variable to denote whether a gene is expressed in a cell and fits a logistic regression for the discrete indicator variable. For genes expressed in a cell, MAST fits a normally distributed linear model. The gene differential expression analysis between groups is tested using the differences in summarized regression coefficients between groups. The null distribution of the test statistics is estimated through a bootstrap method with empirical Bayes approach regularizing model parameters.
scDD is also based on a Bayesian modeling approach to detect differentially expressed genes between groups (42). ScDD models the excess zeros using a logistic regression and models the non-zero gene expressions using a conjugate Dirichlet process mixture model of normal distributions. For testing gene differential expressions, scDD calculates an approximate Bayes factor score that compares the probability of differential expression with the probability of non-differential expression. The empirical P-values for the differential expression tests are computed using a permutation method.
DEsingle uses a zero-inflated negative binomial (ZINB) model to characterize the read counts and excess zeros in single-cell RNA sequencing data (43). The ZINB model has two components, one modeling the excess zeros through an indicator variable multiplied by the proportion of constant zeros and the other modeling the positive gene expressions through a negative binomial model multiplied by the proportion of non-zeros. The gene differential expression analysis is conducted through likelihood ratio tests within the ZINB model framework.
Different from other excess zero modeling methods for single-cell RNA sequencing differential analysis, SigEMD takes an additional step in modeling the excess zeros (44). SigEMD first uses logistic regression and the Wald test to select genes with zero counts that are affecting gene expression distributions, then SigEMD imputes those zero counts through a Lasso regression model. The gene differential analysis between groups is conducted using a non-parametric test based on Earth Mover’s Distance (EMD). The P-values are computed using a permutation method.
SINCERA is a pipeline developed for single-cell RNA sequencing data analysis (46). SINCERA can be used for the pre-processing of single-cell RNA sequencing data, identifying cell types and key gene expression regulators, selecting differentially expressed genes, and predicting gene signatures. For gene differential analysis between groups, SINCERA uses the Welch’s t-test when the sample size of both groups is >5; otherwise, SINCERA uses the Wilcoxon rank sum test. SINCERA also includes the SAMseq algorithm as an optional method for selecting differentially expressed genes from single-cell RNA sequencing data.
D3E is a discrete distribution method used for single-cell RNA sequencing gene differential expression analysis (47). To identify genes differentially expressed between groups, D3E uses either the Cramér-von Mises test, the Kolmogorov–Smirnov test or the likelihood ratio test. To test the hypothesis of the driving mechanism in apparent changes, D3E fits a transcriptional burst model to the expression data for each gene through a method of moments or a Bayesian approach. Following the transcriptional burst model, parameter changes between groups will be calculated.
EMDomics detects significantly differentially expressed genes between groups for single-cell RNA sequencing data by comparing the two distribution functions of gene expressions between groups (48). EMDomics compares the differences between groups based on EMD, a commonly used approach to compare two histograms in imaging analysis. EMDomics measures the differences between two normalized distributions of the two groups through normalized total cost of transforming distributions between groups. Permutation test is used to compute the P-values for the EMD tests.
Using the census algorithm, Monocle2 converts the relative single-cell RNA sequencing expression levels into relative counts for each gene without experimental spike-in controls (45, 51). The census algorithm in Monocle2 estimates the total number of mRNAs in each cell by calculating the ratio of the total number of single-mRNA genes to the fraction of the library contributed by them and then rescales the transcript per million (TPM) in single cell values into mRNA counts for each gene. Monocle2 tests gene differential expression between groups through a likelihood ratio test for comparing a full generalized linear model with additional effects to a reduced generalized linear model based on negative binomial distributions.
Linnorm proposes a new normalization and transformation method for single-cell RNA sequencing data analysis (49). The normalization and transformation parameters are calculated based on stably expressed genes across different cells. Linnorm uses the moderated t-statistics in the limma package for gene differential expression analysis through the empirical Bayes approach to centralize the estimated variances from the data.
Discriminative learning uses the multiple logistic regression framework (50). Different from previous single-cell RNA sequencing differential analysis methods, discriminative learning uses the group labels as the outcome variables and uses the gene expression levels and other characteristics of the samples as the predictor variables to identify genes significantly associated with the group labels through likelihood ratio tests.
A previous comparison of six methods (SCDE, MAST, D3E, Monocle, edgeR, DESeq) for single-cell RNA sequencing differential analysis examined the performance of those methods under different unimodal or bimodal distributions (52). The comparison found significant differences among those methods regarding precision, recall, empirical power, and overall performance. The investigation did not suggest an optimal method that performs better than other methods under all scenarios. A call for new differential analysis methods for single-cell RNA sequencing data was suggested as a result from the comparisons.
Another evaluation of 36 approaches for gene differential expression analysis in single-cell RNA sequencing data found remarkable differences in the performance of those approaches (53). They also found the gene differential expression analysis methods developed specifically for single-cell RNA sequencing data did not perform generally better than the methods developed for bulk RNA sequencing data.
A recent comprehensive evaluation of single-cell RNA sequencing differential analysis methods compared 11 differential analysis methods, including SCDE, MAST, scDD, DEsingle, SigEMD, SINCERA, D3E, EMDomics, Monocle2, edgeR, and DESeq2 (54). The gene expression values from real single-cell RNA sequencing experiments are multimodal with excess zeros, which makes the gene expression differential analysis challenging. Currently, there is no method available that can handle both multimodality and excess zeros. The comparison showed that no single method performs uniformly better than other methods under all circumstances. In general, non-parametric methods that could handle multimodality perform better than methods modeling excess zeros, while methods modeling excess zeros resulted in higher true positive rates and lower false positive rates. Gene differential expression analysis methods developed for single-cell RNA sequencing data had similar performance as those methods developed for bulk RNA sequencing data. In addition, low agreement was found among the selected genes from those differential analysis methods for single-cell RNA sequencing data. This recent evaluation also indicates the need of new differential analysis methods for single-cell RNA sequencing data.
As RNA sequencing technology is getting increasingly popular and more advanced in the biomedical and biological fields, coupled with a decrease of the cost for RNA sequencing experiments, more RNA sequencing differential analysis methods will be developed to identify differentially expressed genes between groups. For gene differential analysis methods used for both bulk RNA sequencing and single-cell RNA sequencing data, there is no consensus on an optimal method under all circumstances, although DESeq2 is currently very popular for gene expression differential analysis for bulk RNA sequencing data within the bioinformatics community. Remarkable differences were also found among different gene expression differential analysis methods in terms of numbers and characteristics of selected differentially expressed genes. Gene expression differential analysis methods specific for single-cell RNA sequencing data have a similar performance as methods developed for bulk RNA sequencing data, when both were used for single-cell RNA sequencing data. Evaluations of commonly used gene expression differential analysis methods for RNA sequencing data indicate a need for better differential analysis methods, especially for single-cell RNA sequencing data. Taking consensus of the selected differentially expressed genes from multiple methods could improve accuracy and reduce the false discovery rate, but it could also increase the false negative rate. New methods that integrate multiple approaches with both reduced false positives and reduced false negatives might be the direction for future differential analysis method development.
