Liver cancer is the seventh most common cancer worldwide, and one of the deadliest, with a 5-year survival rate in the range of 5–30% (1). A recent assessment by the Global Burden of Disease Cancer Collaboration revealed that 1 in 38 men and 1 in 111 women will develop liver cancer at some point in their lives (2). In 2016, liver cancer contributed to approximately 10% of all cancer-related deaths worldwide, ranking second in terms of the absolute number of years of life lost, only behind lung cancer (2). High morbidity and mortality rates underscore the need to develop platforms to identify diagnostic tools for better and earlier detection and more effective targeted therapies, in order to halt disease progression and improve survival of patients. Therefore, appropriate preclinical models of liver cancer, in particular hepatocellular carcinoma (HCC)—the most common type of liver cancer, representing approximately 70% of all primary liver malignancies (3, 4)—are critical research tools that enable breakthroughs in the biology of hepatocarcinogenesis and testing of novel therapies. Current therapy options for HCC are limited to surgical and non-surgical ablative therapies or liver transplantation; systemic approaches, such as treatments with multikinase inhibitors, only prolong the life expectancy of patients by 2–3 months (5).
Human hepatocarcinogenesis typically occurs secondary to chronic liver diseases. These include the iron overload disorder hemochromatosis, viral hepatitis, alcoholic fatty liver disease (AFLD), and non-alcoholic fatty liver disease (NAFLD), all of which can promote steatosis, the build-up of excess fat in liver cells, and steatohepatitis, when the condition is accompanied by inflammatory and fibrogenic components. Steatohepatitis causes cellular damage and oxidative stress and instigates the release of pro-inflammatory and pro-fibrogenic signaling molecules, which (i) recruit immune cells to the site of injury, (ii) induce hepatic stellate cell-mediated collagen deposition in the hepatic wound healing response, and (iii) activate liver progenitor cells, as part of a so-called Ductular reaction, to replace lost tissue (6, 7). If injury is halted, matrix is resorbed and normal liver architecture is restored. However, chronic pathological insults can lead to excessive fibrosis, cirrhosis, and ultimately liver cancer (Figure 1) (7).

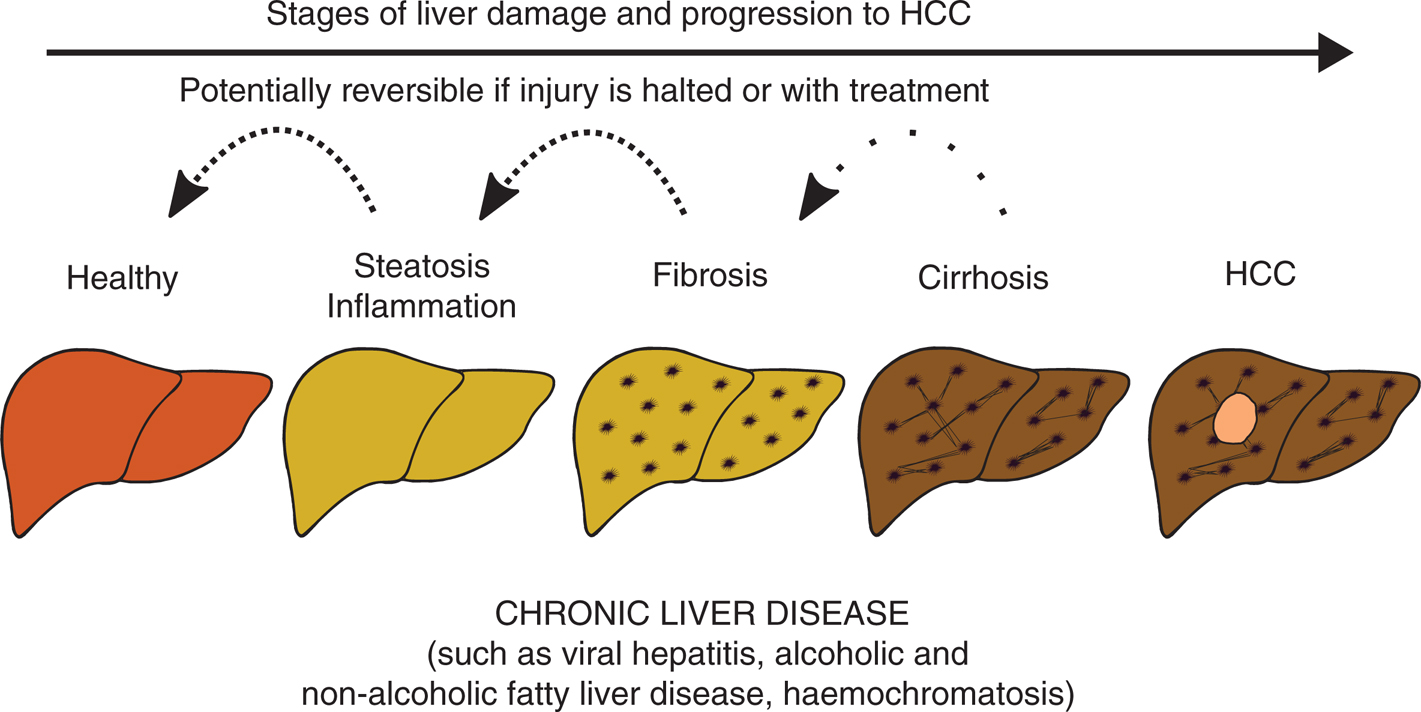

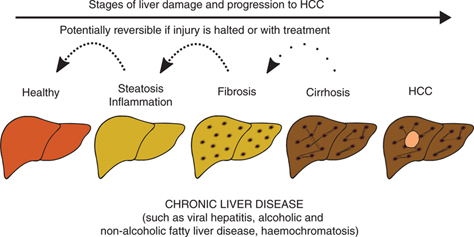

Figure 1 Progressive stages of liver disease to hepatocellular carcinoma development. Chronic liver diseases that predispose to hepatocellular carcinoma (HCC) are generally characterized by steatosis and hepatocellular damage or death, followed by inflammation and fibrosis. These are initial and potentially reversible wound healing when the disease stimulus is withdrawn. However, if the injury is persistent, liver disease may progress to end-stage complications such as cirrhosis and HCC.
Micehave become the pillar for biomolecular discovery in human disease due to numerous advantages over other model organisms (8, 9). An ever-growing list of mouse models has been developed to study different aspects of chronic liver disease and progression to HCC. However, appropriate recapitulation of human pathological features has been challenging. Furthermore, when analyzed in detail, distinct models have been shown to induce remarkably different pathological patterns (10). This chapter describes some commonly used as well as the most recently developed mouse models of HCC. Table 1 indicates the timeframe for HCC development and highlights some of the most prominent features and characteristics of each model discussed in this chapter (Table 1).
TABLE 1 Commonly used mouse models of hepatocellular carcinoma classified as chemotoxic, diet-based, and genetic
Model |
HCC development (time) |
Features |
References |
---|---|---|---|
Chemotoxic | |||
DEN | Males >80%, females 10–30% incidence at 9 months. | Neutrophil infiltration, bile duct proliferation, centrilobular hemorrhagic necrosis, bridging necrosis. No fibrosis or cirrhosis. | (15–18, 21–27) |
CCl4 | 1–2 years for most mice strains. As early as 15 weeks in A/J mice | Hepatocyte necrosis, steatosis, Kupffer cell activation, immune cell infiltration. Fibrosis precedes HCC. | (42–52) |
TAA | 6–12 months | Mild steatosis, centrilobular necrosis, severe inflammation. Steady progressive worsening of inflammatory, fibrogenic and progenitor cell responses. Strong centrally-driven fibrotic component, progressing to cirrhosis prior to HCC. | (10, 58–61, 63–68, 71–74) |
DEN+CCl4 | 100% incidence at 5 months | Similar to CCl4 alone but with shortened HCC latency and increased presence of progenitor cells. | (54, 55) |
DEN+TAA+HFD | 100% incidence at 6 months | Reliable progression to HCC with short latency. Includes steatosis, inflammatory and fibrogenic features. | (75) |
Diet | |||
CDE | 75% incidence at 14 months | Periportal injury, severe steatosis at early stages. Mild to moderate fibrosis, strong liver progenitor cell component. | (10, 92, 93) |
ALIOS | 60% incidence at 1 year | Severe steatosis, hepatic necrosis and inflammation. Ballooning hepatocytes and Mallory hyaline at 16 weeks. Mild periportal to bridging fibrosis, later liver progenitor cell involvement. | (97, 98) |
DIAMOND | 89% incidence at 1 year (can be accelerated to 6 months by combination with CCl4). | Pronounced hepatocyte ballooning and progressive fibrosis at 6 months. Strong histologic and transcriptomic similarities with human NASH and HCC. | (99–101) |
MUP-uPA+HFD | 78.6% incidence at 32–40 weeks | Several hallmarks of human NASH (activation of hepatic stellate cells, bridging fibrosis, immune cell infiltration, and ballooning hepatocytes), Highlights the role of ER stress in HCC development. | (102, 103) |
Genetic | |||
c-Myc | Incidence of 40% at 45 weeks, 60% at 55 weeks, and 80% at 65 weeks | Mild to severe hepatic dysplasia at 2–3 months of age. First carcinogenic lesions at about 1 year of age. Can be accelerated by co-expression of TGF-α and prevented by HGF. HCC development drastically accelerated by co-treatment with CCl4. | (109–113) |
E2F1 | Incidence of 33% at 1 year | Hepatic dysplasia at 2 months and adenomas at 6 months. HCC development accelerated by c-Myc co-expression. | (115, 116) |
Active β-catenin +H-rasG12V | 100% incidence within 2 months of genetic manipulation | Active β-catenin alone does not progress to HCC. Combination with H-rasG12V induces rapid HCC development. Dysplastic hepatocytes surrounded by immune infiltration in the first 4 weeks and multifocal nodules by 5 weeks. | (122, 123) |
Apc KO | 67% incidence at 8–9 months | Dose of adenoviral injections is key (0.5 × 109 pfu). High doses increase mortality risk. Trabecular and well-differentiated HCCs. | (124, 125) |
Trp53 KO | 14–20 months | Majority of tumors display bipotential cell phenotypes (co-expression of hepatocyte and biliary markers). | (127, 129) |
PTEN KO | Incidence of 47% at 44 weeks and 66% at 74–78 weeks | Hepatomegaly and steatosis at 10 weeks. Features of NASH (hepatic inflammation and fibrosis) at 40 weeks. | (132, 133) |
Active β-catenin, β-catenin gene Ctnnb1 lacking exon 3; ALIOS, American lifestyle-induced obesity syndrome; Apc, adenomatous polyposis coli; CCl4, carbon tetrachloride; CDE, choline-deficient and ethionine-supplemented diet; c-Myc, Myc proto-oncogene; DEN, diethylnitrosamine; DIAMOND, diet-induced animal model of non-alcoholic fatty liver disease; E2F1, E2F transcription factor 1; HFD, high-fat-diet; H-rasG12V, substitution of glycine with valine at position 12 of human RAS; MUP-uPA, major urinary protein-urokinase-type plasminogen activator transgenic mice; PTEN KO, liver-specific knockout of phosphatase and tensin homolog; TAA, thioacetamide; Trp53 KO, liver-specific knockout of the mouse p53 ortholog.
A variety of strategies can be used to generate HCC in mice. These involve administration of toxic agents, genetic modifications such as expression of oncogenes or disruption of tumor suppressor genes, cancer-promoting diets, and xenograft implantation models. Often, multiple strategies are combined in order to achieve clinically relevant disease progression to mimic human HCC. Thus, it is important to choose the most appropriate model and time point to best answer an underlying research question. Importantly, it may be necessary to validate novel therapeutic targets across multiple models before they can be considered for translation into clinical trials.
Several hepatotoxins have been used to induce HCC in mice. These chemicals either cause DNA damage directly and, therefore, produce cancer-promoting mutations, or act indirectly by facilitating clonal expansion of transformed cells (11). Timing and reproducibility of tumor development can vary significantly between different compounds and, interestingly, between studies from different research groups. The latter possibly reflects differences in the murine gut microbiota, which are known to play key roles in tumor growth, as recently demonstrated in pancreatic and colon cancer as well as melanoma (12). Hepatotoxins that are generally regarded as appropriate tumor inducers mostly recapitulate the multistep progression stages of human HCC involving injury, steatosis, inflammation, fibrosis, and carcinogenesis. However, the degree and level of interplay of these histological changes often varies. The most commonly used hepatotoxins to study HCC in mice are discussed below.
DEN, also known as N-nitrosodiethylamine, is probably the most commonly used chemical to induce liver cancer in mice and is either administered orally or through peritoneal injection. DEN is bioactivated in centrilobular hepatocytes in a cytochrome P450-dependent manner and produces metabolic sub-products that have DNA alkylating properties, ultimately leading to mutagenesis (13). Tumor incidence is reduced in CYP2 E1-deficient compared to wild-type mice, suggesting that it may be one of the key CYP enzymes that catalyzes DEN bioactivation (13). DEN administration also induces reactive oxygen species (ROS) formation and oxidative stress, which constitutes an additional mechanism by which it promotes hepatocarcinogenesis (14).
A single intraperitoneal dose of 5 mg/kg of DEN to weaning, 15-days-old male mice is sufficient to induce hepatocarcinogenesis in approximately 80% of all animals 9 months after induction (15). However, long-term administration or higher doses of DEN can reach an incidence of 100% in shorter timeframes (15–18). While DEN reliably induces HCC, dose, timing of administration, gender, age, and strain impact the severity and timing of tumor appearance (19). High cellular proliferation is known to enhance mutagenesis by chemical carcinogens both in vitro and in vivo (20). Thus, in most cases, juvenile mice are used, which display actively proliferating hepatocytes at this stage of their development. DEN treatment results in the expansion of cells with oncogenic mutations, leading to dysplastic lesions that eventually give rise to carcinomas (19).
Vesselinovitch and Mihailovich conducted an extensive dose–time response kinetics study of DEN-induced hepatic carcinogenesis, which included evaluation of early alterations such as basophilic foci and nodules, as well as late transformation to adenomas and hepatocellular carcinoma lesions (21). Briefly, HCC developed more reliably when DEN was administrated to younger mice (15-days old) in a dose-dependent manner, ranging from as little as 0.625 up to 5 mg/kg of body weight, whereas treatment of more mature mice (42-days old) with doses up to 50 mg/kg failed to induce predictable carcinogenesis within the same observational period of up to 110 weeks (21).
Another factor influencing the carcinogenicity of DEN is the gender. The incidence for DEN-induced liver cancer can reach 100% for male mice, but is only approximately 10–30% in females, indicating a gender-specific differential response (22–27). Nakatani et al. studied the influence of hormonal factors and demonstrated that ovariectomy or testosterone supplementation increased the occurrence of liver tumors in females treated with DEN. Furthermore, male castration paralleled by estrogen administration resulted in a reduced tumor incidence of 26%, similar to the prevalence observed in females (28). These findings in experimental liver carcinogenesis are consistent with the observation that men are three to five times more likely to develop HCC than women (29). The precise molecular mechanisms underlying gender imbalance are not completely understood, but have recently been demonstrated to involve estrogen-dependent interleukin (IL)-6 inhibition in females, and direct downstream effects in nuclear factor kappa B (NF-κB) and signal transducer and activator of transcription 3 (STAT3) signaling, two key transcription factors in HCC development (24, 30).
The sequence of hepatic alterations in DEN-treated mice is highly similar to human chronic liver disease to HCC progression. During the course of their life, mice subjected to DEN develop histological alterations that include neutrophil infiltration, bile duct proliferation, centrilobular hemorrhagic necrosis, and bridging necrosis, all of which are observed in human HCC (31). However, the most common histopathological features of human HCC, fibrosis, and cirrhosis (32) are not observed with DEN administration alone (33). Indeed, 80–85% of all cases of HCC occur in cirrhotic patients, and only about 10% of HCC cases are reported in the absence of any chronic liver disease (34). Thus, models that include fibrogenesis are most relevant to a better understanding of the pathogenesis of human disease. The combination of DEN with fibrotic compounds such as carbon tetrachloride (CCl4) and thioacetamide (TAA) has been demonstrated to better model this particular feature of HCC (35).
CCl4 was widely used as a fumigant, cleaning product, and in fire extinguishers until it was phased out due to safety concerns and banned worldwide in 1996, under the “Montreal Protocol on Substances that Deplete the Ozone Layer.” CCl4 is a hepatotoxin known to induce liver damage, infiltration of inflammatory cells, and fibrosis (36). Similar to DEN, hepatotoxicity involves metabolism through cytochrome P450 and generation of toxic metabolic sub-products in hepatocytes (37, 38). One of them, trichloromethyl radical (CCl3*), is a highly reactive intermediary that can damage nucleic acids, proteins, and lipids, leading to impairments in diverse cellular processes (39). The main mechanism for CCl4-induced hepatic toxicity involves exacerbated lipid peroxidation, which leads to plasma membrane damage and secondary accumulation of lipoproteins and lipid droplets in hepatocytes (40, 41). Thus, one advantage of the CCl4 model is that it includes hepatic steatosis in its pathogenesis. Additionally, CCl4 promotes activation of Kupffer cells, and this has been demonstrated to be necessary for its fibrogenic effect (42). Pro-inflammatory signaling mediated by Kupffer cells attracts further immune cell recruitment and infiltration, which contributes to the tissue damage elicited by CCl4 administration (43). A single dose of CCl4 leads to centrilobular liver necrosis, followed by tissue repair and regeneration (44). Thus, in contrast to DEN, CCl4 must be administrated chronically and/or repeatedly in order to lead to cycles of injury, inflammation, fibrosis, and cirrhosis, and it eventually gives rise to HCC (11).
CCl4 is most often provided to mice as a 2–4 mL/kg 50% solution in mineral or vegetal oil, either by gavage or intraperitoneally (45–47). However, a significant variation in dosage can be found in the literature. Inhalation exposure has also been utilized, although this route is much less common (48). The frequency of doses also varies in different protocols, but generally consists of weekly, biweekly, or three times a week administrations. While the pathology induced by CCl4 has a prominent fibrogenic component (49, 50) and A/J male mice were shown to present 100% incidence of HCC following a protocol of only 17-weeks of CCl4 administration (49), the evolution to HCC generally only occurs after long-term exposures of 1–2 years for most mouse strains (11, 51, 52). Therefore, CCl4 is often combined with other tumor-promoting agents such as alcohol, DEN, and others, which allow for a more timely induction of hepatic carcinogenesis, while maintaining the inflammatory and fibrogenic components that are akin to human HCC (53). For example, a single dose of DEN at 2 weeks of age, followed by biweekly administrations of CCl4 led to a two fold increase in carcinogenesis at 5 months of age (54, 55). Interestingly, this was associated with significant increase in the expression of progenitor cell markers in the non-cancerous parenchyma, suggesting the role of fibrosis in promoting cellular alterations that lead to carcinogenesis. The presence of cells expressing progenitor features has been associated with a more aggressive tumor phenotype and poorer outcomes in human studies (56, 57). However, the exact role of progenitor cells in the development of HCC is largely unknown and is a subject of intense research in the field (7).
TAA has mostly been used to induce fibrosis, cirrhosis, and liver cancer, including cholangiocarcinoma in rats, but studies increasingly emerge on hepatic TAA toxicity in mice (10., 58–61). TAA is an organosulfur compound that undergoes a two-step bioactivation through the flavin-adenine dinucleotide-containing monooxygenases or cytochrome P450 via TAA sulfoxide (TASO or sulfine) to thioacetamide sulfdioxide (TASO2 or sulfene). TASO2 is a highly reactive metabolite, which causes significant fat deposition, necrosis, and inflammatory cell aggregates in centrilobular areas, where TAA is metabolized (10, 62). The mechanisms of toxicity are believed to be secondary to its oxidant properties, including lipid peroxidation and production of ROS, dampening antioxidant defenses and exacerbating hepatic oxidative stress (62). In mice, it is usually administered by the addition of drinking water at 300 to 600 mg/L, allowing for a simple model to induce carcinogenesis without the need for regular injections (10, 60, 63). However, it can also be administered intraperitoneally two to five times a week (63–65).
A detailed 6-week time course analysis by Köhn-Gaone and colleagues compared the molecular and cellular injury dynamics of TAA-induced chronic liver injury to feeding of a choline-deficient and ethionine-supplemented (CDE) diet in mice (10). While the CDE diet induced periportal injury, steatosis, and fibrosis with a peak of all measured injury parameters in the first 2 weeks, followed by slow normalization of liver histology and function, TAA supplementation led to progressively worsening inflammatory, fibrogenic, and liver progenitor cell responses. Various studies have reported portal, portal–portal, or portal–central bridging in the TAA model (63, 66–68). However, the comprehensive time course analysis in C57BL/6 mice revealed that fibrosis is centrally driven in TAA liver injury and progresses to cirrhosis within only 6 weeks of treatment (10). Long-term treatment with TAA alone has been demonstrated to induce HCC within 14–16 weeks in rats (69, 70). Murine studies are much rarer in the literature and describe HCC development after 26 weeks to 12 months of TAA treatment (71–74). Figure 2 illustrates tumor histology and characteristics of TAA-induced HCC development compared to CDE-mediated HCC development in mice after 7 months of treatment.

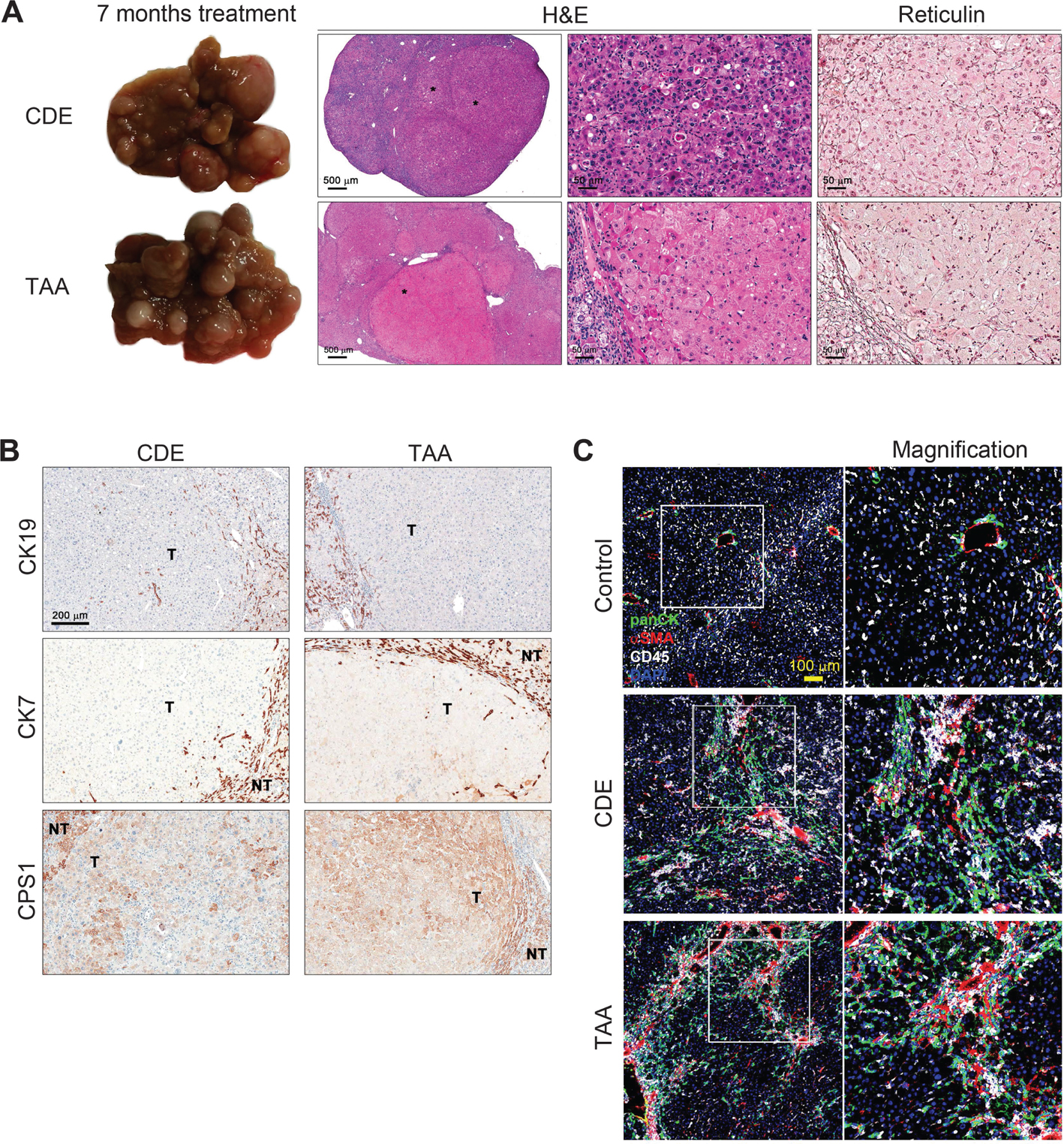

Figure 2 Histology and cellular characterization of CDE- and TAA-induced tumors. (A) Gross liver morphology assessment of C57BL/6J mice treated with CDE or TAA for 7 months demonstrates the development of advanced tumors. Hematoxylin and eosin (H&E) stains reveal the presence of a great variety of neoplastic changes and nodules. TAA-induced tumors comprise large polygonal cells with abundant eosinophilic cytoplasm and atypical stripped nuclei as well as moderate basophilic cell infiltrates. Similar characteristics are identified in CDE-induced tumors, although with weaker eosinophilic cytoplasm and enriched small basophilic cells. An altered stromal network of collagen III-composing fibers demonstrates the characteristic thickening of hepatic cell plates and diffuse reticulin structures within tumors. Reticulin crowding at the interface of tumorous and non-tumorous tissue indicates invasive tumor growth into the surrounding tissue. (B) Immunohistochemical staining of both CDE- and TAA-induced tumors with the biliary and liver progenitor cell markers cytokeratin 19 (CK19) and CK7 and the hepatocellular carcinoma (HCC) marker carbamamoyl phosphate synthetase I (CPS1) identifies the tumors as HCC with biliary and progenitor proliferation almost exclusively in extra-tumoral tissue. (C) Fluorescent labeling of the cellular components of the injury and regeneration niche, which hosts panCK+ biliary and progenitor cells (green), alpha-smooth muscle actin (aSMA)+ hepatic stellate cells (red) and CD45+ inflammatory cells (white), illustrates the cells’ close spatial relationship and potential for cellular cross-talk in the tumor-surrounding tissue of CDE and TAA mice. NT, non-tumor; T, tumor.
Often, TAA has been used in combination with other methods to induce hepatocarcinogenesis in a shorter timeframe. For instance, combination of a single dose of DEN at 14 days, accompanied by 300 mg/L of TAA in the drinking water, along with high-fat-diet (HFD) feeding from 4 weeks of age, elicited histological features of inflammation, steatosis, and fibrosis that were significantly exacerbated as early as 12 weeks of treatment, and 100% of animals progressed to liver tumors by 24 weeks (75). Such combinatory strategies not only recapitulate different features of human HCC but may also significantly reduce the time for tumor development and have therefore become quite popular in liver cancer research (76).
Recent advances in antiviral therapies, which can result in permanent suppression of hepatitis B virus (HBV) and eradication of HCV, are significantly reducing the incidence of HCC from viral etiology (77). Furthermore, the second and most prevalent risk factor for HCC, alcoholic steatosis, is relatively stable over time (78). This can be attributed to observations pointing to steady or decreasing trend of alcohol consumption per capita in most countries over the past decades (79). Therefore, NAFLD and its advanced form, non-alcoholic steatohepatitis (NASH), are responsible for the current and future increases in chronic liver disease and HCC incidence worldwide (80). NAFLD is the hepatic manifestation of the metabolic syndrome and is estimated to affect an astonishing 24% of the world population (81). NAFLD is generally accompanied by obesity, insulin resistance, and dyslipidemia. Thus, diet-induced models that manifest those metabolic alterations are well suited to represent human NAFLD-driven HCC. Noteworthy, only a small fraction of patients with NAFLD progresses to HCC (82). The network of factors that predict NAFLD progression to NASH and carcinogenesis are poorly understood, hence the importance of appropriate pre-clinical models to further our knowledge in this particular setting (83, 84).
Several diet-induced mouse models exist that induce HCC; however, not all models replicate all the associated metabolic dysfunctions that are characteristic of human NAFLD. Feeding rodents a diet deficient in choline (CD), for instance, is known to induce hepatic steatosis and progression to HCC (85). This has first been observed in rats (86, 87) and confirmed in a number of mouse strains (88). Mechanistically, choline deficiency leads to defects in phospholipid synthesis, lipoprotein secretion, oxidative damage, endoplasmic reticulum (ER) stress, and cell death (85). Diets that combine choline with methionine deficiency (MCD) induce even more severe pathology, characterized by steatohepatitis within 1–2 weeks and fibrosis by 8–10 weeks of feeding (89, 90). However, both CD and MCD are not accompanied by other physiological hallmarks of the metabolic syndrome, namely dyslipidemia, glucose intolerance, and insulin resistance (91). Furthermore, these diets promote severe body weight loss and morbidity, and thus, they are generally not suitable for long-term experiments leading up to HCC. In order to significantly reduce the time to carcinogenesis, ethionine, a non-proteinogenic cytotoxic methionine analogue, can be added to the CD diet (CDE) and induce severe hepatic inflammation with a strong proliferation of liver progenitor cells and activation of fibrosis-driving hepatic stellate cells in as early as 2 weeks of feeding (92). Long-term CDE feeding of C57Bl/6 mice induced HCC in 75% of animals, whereby tumor development was significantly inhibited following treatment with the multi-tyrosine kinase inhibitor imatinib mesylate (93). Features of CDE-induced HCC after 7 months of treatment are demonstrated in Figure 2 in comparison with tumors provoked by TAA administration.
The HFD model involves feeding animals ad libitum diets containing a total of 45% to75% calories intake derived from fats (94). Several formulations exist in which the types and percentages of fats vary significantly (95). In this model, hepatic steatosis, characterized by increased liver triglyceride accumulation and fatty acid synthesis, is accompanied by other features of the metabolic syndrome such as obesity, glucose intolerance, and insulin resistance (96). It is a very reliable model to induce simple hepatic steatosis; however, in most mouse strains, no additional liver damage and inflammation, neither development to HCC, are observed (83).
To produce a model that more closely resembles the human disease, Tetri et al. developed a formulation containing nutrients commonly found in fast foods and kept mice under conditions designed to encourage sedentary behavior, the so-called American Lifestyle-Induced Obesity Syndrome (ALIOS) model (97). The formulation included trans-fats and high-fructose corn syrup, in addition to removal of cage racks to promote low energy expenditure. After 16 weeks under this regime, mice developed severe hepatic steatosis, associated with necrosis and inflammation. Histological features of human NASH such as ballooning hepatocytes and Mallory hyaline were also described. Fibrogenesis was not detected histologically; however, procollagen mRNA expression was found to be upregulated, suggesting that fibrosis might develop at time points later than 16 weeks (97). Consistent with this hypothesis, a separate study used 12-month exposure to the ALIOS protocol and revealed fibrosis with severity ranging from mild periportal to bridging fibrosis (98). These observations were accompanied by substantial activation of the liver progenitor cell niche, which was evidenced through increased numbers of cells positive for pan-cytokeratin (panCK) and sex-determining region Y-box 9 (Sox9) throughout the parenchyma. HCC was observed in 60% of all ALIOS mice at 12 months (98). These studies demonstrate that diet and lifestyle interventions are sufficient for the induction of NASH and hepatocarcinogenesis in mice. Future studies are necessary to assess the level of similarities between the genetics and transcriptomics of carcinogenesis observed in ALIOS mice compared to human HCC.
Another western diet model, comprised of high cholesterol, high saturated fat, and high fructose, has been shown to promote NASH, which was characterized by pronounced hepatocyte ballooning and progressive fibrosis after 6 months of feeding (99). No HCC was observed at 6 months, but it resulted in 89% incidence of spontaneous HCC after 12 months of feeding to a stable isogenic cross between C57BL/6J and S129 mice (100). Interestingly, this model, named Diet-Induced Animal Model Of Non-alcoholic fatty liver Disease (DIAMOND), presented remarkable histologic and transcriptomic similarities with human NASH and HCC. Tsuchida et al. recently demonstrated that the same diet, combined with low weekly doses of CCl4, can develop rapid progression to stage 3 fibrosis and HCC within 12 and 24 weeks, respectively. The pathology closely mimicked histological, immunological, and transcriptomic features of human NASH, thus representing a rapid induction model suitable to study hepatocarcinogenesis in a clinically relevant setting (101).
Most recently, another diet-induced model of NASH-driven HCC was established through genetically induced predisposition to HCC. Feeding of a HFD to major urinary protein (MUP)-urokinase-type plasminogen activator (uPA) transgenic mice, which overexpress uPA specifically in hepatocytes, induced liver disease that recapitulated several hallmarks of human NASH and reliable progression to HCC (102). In comparison with HFD-fed control wild-type animals, MUP-uPA mice displayed increased activation of hepatic stellate cells as well as upregulation of collagen and other fibrogenic markers. Immune cell infiltration, bridging fibrosis, and ballooning hepatocytes were all present in MUP-uPA mice at 24 weeks after diet initiation. Hepatocarcinogenesis was observed at 32–40 weeks of HFD feeding in about 78.6% of these animals. The mechanism of disease progression involved excessive ER stress, induced by hepatocyte overexpression of uPA and exacerbated by HFD, as well as tumor necrosis factor (TNF)-dependent inflammation (102). This model was later used to demonstrate the key role of caspase-2, downstream of TNF and ER stress, in mediating the activation of sterol regulatory element-binding proteins (SREBP), recognized to participate in NASH development (103).
Human HCC is known to have a very high level of inter- and intra-tumor genetic heterogeneity (104). Illustrating this concept, a study by Schulze and colleagues employed exome sequencing analysis and identified mutations in 161 distinct putative driver genes in a cohort of only 243 hepatic tumors (105). In addition, a recent study published by the Cancer Genome Atlas Research Network investigated 383 HCC cases by whole-exome sequencing and DNA copy number analyses and assessed 196 HCC samples for their DNA methylation, RNA, miRNA, and proteomic status. The comprehensive data set, coupled with robust statistical power by the large investigated cohort, enabled the identification of various molecular signatures, which may be therapeutically targeted in different HCC subgroups (106). The individual roles of many of the identified genes and pathways in hepatocarcinogenesis have been, and continue to be, determined using mouse genetics. Such models are excellent tools to investigate the discrete effects of candidate oncogenes or tumor suppressor genes in HCC. The number of genetically engineered mouse models of HCC is very large and continuously expanding. Moreover, comprehensive reviews describing available models have been published elsewhere (107). The scope of this chapter is to present a few of the most commonly used and well-characterized genetic models in detail.
The transcription factor c-Myc controls numerous cellular processes, including cell cycle progression and proliferation. Mutations that activate c-Myc are known to be highly associated with carcinogenesis in human HCC (108). Transgenic mice, overexpressing c-Myc specifically in the liver, develop hepatic tumors with a relatively long latency of approximately 12–15 months (109–111). Tumor incidence is of about 40% at 45 weeks of age, 60% at 55 weeks, and 80% at 65 weeks (111). To limit oncogene expression to the hepatic tissue, the albumin promoter has most commonly been utilized due to its specificity to hepatocytes (11). When c-Myc was combined with transgene expression of growth factors such as transforming growth factor alpha (TGF-α) and hepatocyte growth factor (HGF), opposing results were obtained. Combination with TGF-α led to a significant acceleration of the neoplastic development, with tumors developing before 16 weeks of age (110). In contrast, HGF prevented malignant transformation when investigated in a similar setting (112). Interestingly, the kinetics of carcinogenesis induced by c-Myc can be drastically accelerated to under 40 days by co-treatment with the hepatotoxins CCl4 or 5-diethoxycarbonyl-1,4-dihydrocollidine (DDC) (113). An elegant study by Shachaf and colleagues demonstrated that inactivation of the MYC oncogene resulted in tumor regression, accompanied by differentiation of the tumor cells into hepatocytes and cholangiocytes. The tumors lay dormant until c-Myc was reactivated in cells the authors proposed to be cancer stem cell-like cells (114).
The E2F transcription factor 1 (E2F1) has also been identified as frequently dysregulated and/or mutated and was demonstrated to induce HCC in mice upon hepatic transgenic overexpression (115, 116). E2F1 mice showed signs of hepatic alterations as early as 2 months of age, with most animals developing adenomas at 6 months. However, tumors progressed to HCC only in one-third of experimental animals at 1 year of age. Co-expression of E2F1 and c-Myc further accelerated the appearance of focal lesions and severe dysplasia, leading to earlier development of HCC as compared to either of the oncogenes alone (117).
Wnt/β-catenin signaling controls a plethora of cellular communication networks in embryonic development and demonstrates key roles in regulating stemness and cell differentiation in health and disease (118). Pathological alterations of this pathway are known for its involvement in many human cancers, including liver cancer (118, 119). Beta-catenin is one of the key effectors of Wnt signaling, and its gene CTNNB1 is the most frequently found mutated component of this pathway in human HCC (120). Altered activity of β-catenin, as evidenced by mutation or nuclear translocation, was observed as an early event in hepatocarcinogenesis driven by distinct genetic models (121). Yet, constitutive activation of β-catenin through deletion of its regulatory domain was not sufficient to promote hepatic tumorigenesis by itself (122). When combined with oncogenic H-ras (H-rasG12V), however, β-catenin activation resulted in aggressive HCC development with 100% incidence within 3–4 months following the genetic manipulation (123). Interestingly, the most commonly used approach to induce hepatic β-catenin activation in mice has been the selective Cre-Lox disruption of its negative regulator, adenomatous polyposis coli (Apc). This indirect approach for the stabilization of active β-catenin was shown to lead to spontaneous hepatocyte hyperplasia and 67% incidence of HCC in the surviving animals following 8–9 months of model establishment (124). Tumors generated through this model have recently been shown to possess a unique metabolic signature, characterized by exacerbated fatty acid utilization (125), suggesting that inhibition of fatty acid oxidation could be a potential therapeutic approach for β-catenin-induced HCC.
Liver-specific knockout models of tumor suppressor genes have also been developed and utilized either alone or in combination with other insults to study liver cancer. The TP53 gene that encodes for the tumor suppressor p53 is found mutated in most human cancers, including HCC (126). P53 knockout mice displayed a significantly increased hepatocyte proliferation rate and LPC-like cells in periportal liver regions (127). In addition, p53-/-LPCs isolated from these mice and injected subcutaneously into athymic nude mice generated tumors with a HCC morphology (128). In a separate study, the homozygous deletion of Trp53 (the mouse ortholog), specifically in the liver, led to HCC formation after 14 months of age (129). The authors also showed that p53 deletion gave raise to tumors with a bilineal phenotype and increased proliferation of liver progenitor cells. These observations support a model in which loss of function of p53 may promote HCC through an increase in the proliferative capacity of progenitor cells.
Another ubiquitously expressed tumor suppressor gene frequently found mutated or downregulated in human HCC is phosphatase and tensin homolog (PTEN) (130, 131). Its phosphatase activity inhibitsphosphatidylinositol-3-kinases (PI3K) and consequently suppresses downstream protein kinase B (PKB/Akt) and mammalian target of rapamycin (mTOR) growth-promoting signaling. Horie et al. generated a liver-specific PTEN knockout model through the crossing of albumin promoter Cre mice with PTEN-floxed mice (132). The resulting conditional PTEN knockout mice showed hepatomegaly and steatosis as early as 10 weeks of age. At 40 weeks, features of NASH including hepatic inflammation and fibrosis were observed. This model also reliably progressed to tumorigenesis, although with a long latency. The incidence of hepatic adenomas was 47% at 44 weeks, and by 74–78 weeks, 66% of animals displayed HCC (132). The mechanism of carcinogenesis driven by PTEN disruption has later been addressed. It involves hepatic injury-dependent expansion of epithelial cellular adhesion molecule (EpCAM), alpha-fetoprotein (AFP), and cytokeratin 19 (CK-19) positive progenitor cells (133).
Traditionally, genetic modifications, such as gene knockouts, knockins, and transgene overexpression, were introduced in the germline of parent mouse strains to produce whole body genetic alterations (134). This approach has been extensively used in HCC research; however, advances in genetic manipulation tools, such as Cre-Lox recombination, have allowed for a much more precise spatial and temporal control of candidate genes expression, and their utilization has become widespread (135). Notably, this kind of approach has been used to produce conditional liver-specific genetic manipulations, overcoming the problem of embryonic lethal gene mutations as well as restricting phenotypes to the hepatic tissue. Nonetheless, these are both expensive and time-consuming strategies.
A simple and inexpensive alternative method to transfect and gene-edit hepatocytes in vivo is represented by hydrodynamic tail vein injection (HTVI) of “naked” plasmid DNA (non-viral vector, not associated with protective proteins or lipids) directly into the liver of adult mice (136, 137). The technique consists of rapid injection of a large amount of plasmid DNA (about 50 μg in a volume of saline that signifies 10% of the body weight of the injected mouse) into the mouse lateral tail vein (138). HTVI results in transient heart dysfunction and fluid accumulation in the inferior vena cava. The enormous hydrodynamic pressure then forces the fluid into the liver in a retrograde movement, enlarges the liver, and pushes the plasmid DNA into hepatocytes via enlarged sinusoidal fenestrae and transient membrane pores (139), with transfection efficiencies ranging from around 10 to 40% of all hepatocytes (136, 140). While the liver is primarily targeted, other organs including heart, kidney, lung, and spleen are also affected by HTVI; however, to only 0.1% of the levels achieved in the liver (138, 141). One caveat of HTVI is that the expression of transfected genes is transient, peaking within 24 h, but dropping dramatically thereafter (142). In order to circumvent this pitfall, HTVI has been combined with DNA recombination technologies such as Cre-Lox, sleeping beauty (SB) transposase, and CRISPR-Cas9, allowing for genomic integration and continuous expression of genetic modifications. HTVI has been used increasingly to study genetic factors influencing HCC biology, and a variety of HCC models have recently been developed using this approach. Particularly, HTVI permits the assessment of more than one genetic alteration at the same time and therefore the investigation of the combinatory effects of targeting multiple pathways simultaneously. A number of models created through HTVI are discussed below and are summarized in Figure 3.

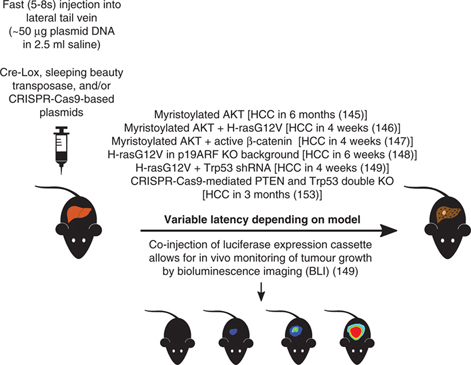

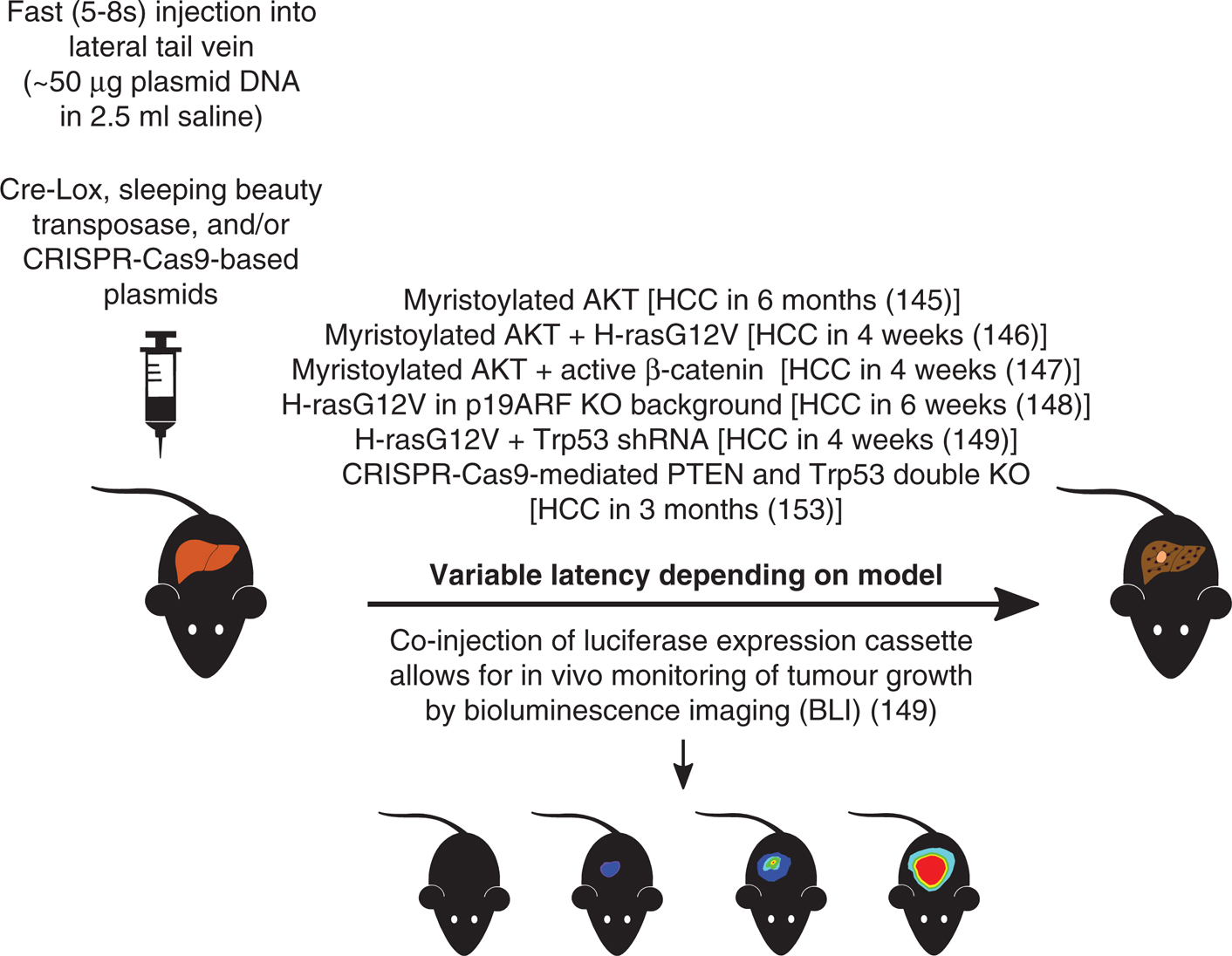

Figure 3 Hydrodynamic tail vein injection models of hepatocellular carcinoma. Plasmid DNA containing Cre-Lox, sleeping beauty transposase, and/or CRISPR-Cas9-based recombination sequences along with key oncogenes or tumor suppressor disruption sequences is injected into the lateral tail vein of young mice. HCC develops with variable latency depending on the chosen genetic manipulation, as indicated. Co-injection of luciferase expression cassette allows for in vivo monitoring of tumor growth by bioluminescence imaging (BLI). HCC, hepatocellular carcinoma; KO, knockout.
The PI3K/AKT/mTOR pathway is central in the regulation of hepatocyte cell metabolism, growth, and proliferation (143). Upregulation of this pathway is frequently observed in human HCC (144, 145) and is associated with poorer outcomes (146). As described before, conditional liver knockout of PTEN, a negative regulator of this pathway, induces NASH-like liver disease and HCC in mice (132). HTVI was used to introduce a constitutively active form of AKT (myristoylated AKT) that induced HCC about 6 months post-injection (147). Wild-type mice were co-injected with SB transposase and active AKT vectors for somatic integration. Disease progression resembled that of PTEN knockout mice, with increased lipogenesis and upregulation of genes involved in fatty acid synthesis (147). Importantly, the expression of transfected AKT was observed in relatively few cells, which were surrounded by non-transfected hepatocytes. This is considered to be an advantage of HTVI, in that it better resembles human liver cancer, where only a limited number of foci are believed to give rise to HCC (140).
It was later reported that co-injection of AKT along with H-rasG12V significantly increases the kinetics of liver tumor development, with 100% of injected animals presenting tumors within 4 weeks post-injection (148). Similar kinetics were observed when AKT was co-expressed with active β-catenin (149). Interestingly, injection of H-rasG12V alone did not lead to HCC (148, 150). However, when expressed in p19 Arf knockout mice, H-rasG12Vinduced HCC in all mice within 6 weeks that otherwise did not develop with simple disruption of this positive regulator of p53 (150). In a similar way, H-rasG12V combined with a shRNA construct targeting p53 led to hepatocarcinogenesis within only 4 weeks (151). This study also demonstrated that oncogenic vectors can be combined with a SB transposase plasmid containing a firefly luciferase expression cassette, allowing for tumor growth to be monitored non-invasively over time through bioluminescence imaging. Altogether, these results highlight the suitability of HTVI to create models that allow for the utilization of synergistic pathways in promoting HCC for rapid induction studies and proof-of-concept therapeutic interventions.
Notably, the SB transposase system permits efficient genomic recombination of exogenous sequences; however, this approach is not specific in terms of the integration site (152). Recombination can potentially occur virtually anywhere in the genome, causing undesired disruption of off-target genes (153). The CRISPR-Cas9 system, on the other hand, offers sequence-specific direct editing of DNA with only rare off-target mutations (154). In a proof-of-concept study, Xue et al. utilized HTVI to generate CRISPR-Cas9-mediated knockouts of PTEN and p53, or combinations of the two, that phenocopied the traditional conditional liver knockouts of these genes (155). PTEN and/or p53 disruptions were shown to be present in 3 to 6% of all hepatocytes. At 3 months post-injection, all animals with double disruptions developed liver tumors (155). The same approach was used to target β-catenin and simultaneously introduced a constitutively active version of it. This notoriously less-efficient event, observed in only 0.5% of all hepatocytes, however, demonstrated that CRISPR-Cas9 can also be used to introduce gain-of-function mutations, providing a highly specific and low off target method for the evaluation of novel gene roles in HCC development (155). Consequently, CRISPR-Cas9 combined with HTVI has been increasingly utilized for HCC research in recent years (156–158).
HCC poses a global health challenge in terms of prevention, diagnosis, and treatment. While epidemiological studies can provide information on associations between HCC and variables that influence its natural history, the progression of interventions into clinical practice requires demonstrated benefits and safety from carefully designed in vivo models such as the mouse models described here. A large variety of experimental chronic liver injury and HCC models are currently available, each with particular characteristic features, mimicking diverse etiologies and disease progression patterns. Selection of the most appropriate animal model allows for the study of disease context-specific as well as common carcinogenic mechanisms and screening of novel therapeutic targets for clinical translation. Until the tyrosine kinase inhibitor sorafenib was approved for unresectable HCC in 2007, there was no FDA-approved therapies available for patients in advanced-stage chronic liver disease. The improved understanding of the molecular mechanisms of HCC, primarily obtained from several of the animal models herein described, has culminated in the development of current targeted therapies, including sorafenib and regorafenib. Several other agents have been tested, or are currently under clinical evaluation, and will hopefully contribute to improved HCC outcomes in the years to come. There is no perfect animal model for human disease; however, mouse models are still invaluable and will continue to form the cornerstone of preclinical studies, designed to delineate interventions that are effective and safe in the future.
