Abstract: Deep brain stimulation (DBS) is an effective treatment for improving motor symptoms of Parkinson’s disease among well-selected patients. Over the past 30 years, several anatomical regions have been targeted with DBS based on prior experience in lesional neurosurgery and characteristic changes in subcortical motor regulation in Parkinson’s disease. In this chapter, we provide an overview of the patient selection process and surgical procedure for DBS. We also discuss the various surgical targets for DBS in patients with Parkinson’s disease. The subthalamic nucleus and the globus pallidus interna are the most common surgical targets among patients with Parkinson’s disease and have equivalent beneficial effects on motor symptoms. Most studies report 30–60% improvement in motor score evaluations after DBS among well-selected patients. After subthalamic nucleus DBS, patients are able to reduce medications by 50% on average. In patients with globus pallidus interna DBS, stimulation has an anti-dyskinetic effect, although medication doses remain similar. DBS of the subthalamic nucleus is generally avoided in patients with a history of depression or neurocognitive impairment. Thalamic DBS ameliorates tremor, but has little effect on bradykinesia or rigidity. Finally, the pedunculopontine nucleus DBS is an emerging experimental treatment for postural and gait instability in Parkinson’s disease.

Keywords: Deep brain stimulation; Globus pallidus interna; Parkinson’s disease; Pedunculopontine nucleus; Subthalamic nucleus; Ventralis intermediate nucleus

INTRODUCTION

Idiopathic Parkinson’s disease (PD) is the second most common progressive neurodegenerative disorder after Alzheimer’s disease (AD). PD affects an estimated 600,000 people in the United States alone, with an estimated global total of 6.8 million people affected in 2015 (1, 2). The typical combination of motor features of PD is called “parkinsonism,” which requires the presence of bradykinesia and the variable coexistence of other clinically defined signs: resting tremor, muscle rigidity, and postural instability. In addition, several other motor and non-motor features occur during the course of the disease, such as cognitive changes, sleep disturbances, and autonomic nervous system disorders. The hallmark pathological feature in PD is profound degeneration of the dopaminergic neurons in the substantia nigra pars compacta (SNpc). Loss of these neurons, which project widely within the striatum and pallidum, produce a state of low dopamine within the brain (3).

Levodopa and other dopamine replacement medications have been used since the 1960s and have revolutionized the treatment of PD (4, 5). Patients initially respond well to dopamine replacement treatment; however, over time, the beneficial effects are associated with complications such as motor fluctuations and levodopa-induced dyskinesias (LID) (6). Motor fluctuations include early wearing off, delayed on and sudden on/off phenomena, while dyskinesias occur usually during peak dose of levodopa in the form of involuntary hyperkinetic movements. These complications occur in a variable spectrum of severity and affect most, if not all, patients during the progression of the disease.

Surgical treatments such as pallidotomy and thalamotomy were used to alleviate the motor symptoms of PD and were historically introduced even prior to the development of dopamine replacement therapy (7–13). These procedures were temporarily abandoned after the introduction of dopamine replacement therapy; however, as the complications of pharmacological therapies were recognized, there was a resurgence in surgical treatments for PD (14–16). During lesioning procedures, such as thalamotomy, electrical stimulation was commonly used to test for effects and side effects prior to making permanent lesions. Also, high-frequency stimulation of the thalamus induced reduction in tremor severity in patients with PD (17). These findings, along with advances in implantable pulse generator devices, led to the development of deep brain stimulation (DBS) systems as we know today. DBS has been used to treat more than an estimated 120,000 neurological patients worldwide (18).

This chapter first discusses the multidisciplinary approach to patient selection for DBS surgery and the general surgical procedure for device implantation. Next, the two most common surgical targets for DBS in PD, the subthalamic nucleus (STN) and the internal segment of the globus pallidus (GPi), are discussed. Finally, studies that compared these two sites and other potential DBS targets such as the thalamus and pedunculopontine nucleus are covered.

PATIENT SELECTION

The Core Assessment Program for Neurosurgical Interventions and Transplantation in Parkinson’s Disease (CAPSIT-PD) recommends that patients considered for surgical intervention should have a disease duration for at least 5 years. This time frame allows for atypical forms of parkinsonism to fully manifest, and during this time, most patients receive levodopa therapy. Patients who are candidates for surgery should show a positive response to dopamine replacement medications. Response to levodopa is generally considered to be a greater than 30% improvement in the Unified Parkinson’s disease rating scale motor score (UPDRS part III). Clinical motor improvement following DBS surgery for PD closely parallels the improvement seen after levodopa challenge. Finally, CAPSIT-PD recommendations suggest that patients with preexisting dementia and severe depression should be excluded.

There is currently no evidence to indicate DBS for any of the other disorders that may mimic the classical symptoms of PD, including multiple system atrophy (MSA), progressive supranuclear palsy (PSP), corticobasal degeneration, and Lewy body dementia (Table 1). As such, it is paramount that the diagnosis of PD is confirmed by a specialist with experience in the field of movement disorders (19). Patients with a confirmed diagnosis of PD should have their symptom responsiveness to levodopa determined by a standardized levodopa challenge test. The results of this test reflect the expected potential benefit achievable with surgery (20). Another important criterion for patient selection is the presence of disabling motor fluctuations and dyskinesias despite trials of all relevant medications tested at therapeutic dosages by a specialist with experience in the field. All patients who are deemed good candidates for DBS surgery should undergo magnetic resonance imaging of the brain prior to surgery in order to rule out any secondary diagnosis or structural concerns within the brain.

TABLE 1 Differential diagnosis of Parkinson’s disease

Neurodegenerative disorders

Idiopathic Parkinson’s disease Familial Parkinson’s disease Multiple system atrophy (MSA) Progressive supranuclear palsy (PSA) Lewy body dementia Corticobasal degeneration Alzheimer’s disease

Drug or toxin related

Haloperidol Metoclopramide Reserpine MPTP Manganese

Vascular

Infarctions of the basal ganglia or midbrain

Infectious or inflammatory

Post-encephalitis Multiple sclerosis

DBS has been shown to be effective in reducing motor symptoms among well-selected patients with idiopathic Parkinson’s disease. It is important that Parkinson’s disease is clearly distinguished from other disease entities that can mimic the symptoms of Parkinson’s disease, which do not respond to DBS.

A preoperative assessment by a neuropsychiatrist and neuropsychologist is also necessary for further risk stratification and identification of patients who may require closer follow-up in the postoperative period. Many patients with PD may have mild cognitive impairment or mood/behavioral impairments that should be identified and managed. In general, stable and milder forms of these abnormalities do not necessarily mean contraindication for surgery; on the other hand, more severe or progressive changes may represent risk factors for further deterioration triggered by the surgical process and/or stimulation.

Although there are no specific age limits for DBS surgery, initial clinical trials included patients who were 50–65 years old (21), while fewer studies included patients older than 75 years (22). This may reflect a general concern among referring neurologists and neurosurgeons regarding serious surgical complications, physiological reserve to recover, and rapid deterioration of motor symptoms among older patients. However, trials that have included older patients demonstrate that these patients still benefit equally from surgery without apparent further risks (22). DeLong et al. analyzed the Thomson Reuters MarketScan national database including more than 1700 patients who underwent DBS for PD between 2000 and 2009 (23). This study analyzed reported 90-day complication rates and did not find any association with increasing age (23). Further studies are needed to project the long-term outcomes of DBS surgery among elderly patients with PD.

More recently, there is evidence to suggest that DBS can improve quality of life and motor function when motor complications become evident, but before they become disabling. In a multicenter, randomized study, Schuepback et al. demonstrated that patients with early, mild PD symptoms had significant improvements in quality-of-life assessments and UPDRS part III scores compared to best medical therapy (24). Patients included in this study were younger and had shorter disease duration than those enrolled in previous, large clinical trials (discussed below) (24). This study challenges the concept that disease severity should be disabling before surgical intervention is delivered; however, it underlines the need for proper diagnosis before enrolling patients in surgery.

As with all elective brain surgeries, patient-specific medical conditions must be considered before proceeding to surgery. Patients who are at increased risk of perioperative complications should be medically optimized prior to any planned surgical intervention. Patients with a history of angina or coronary vascular disease should first be evaluated by a cardiologist. Patients who are taking antiplatelet agents for cardiovascular disease or anticoagulants for atrial fibrillation, pulmonary emboli, or deep venous thrombosis must temporarily stop taking these medications prior to surgery, or should be appropriately bridged with a reversible agent. Co-morbid conditions such as hypertension and diabetes should be adequately controlled to avoid intra-procedural and postoperative complications. Patient’s age and overall physical condition should also be considered when risk stratifying a patient for consideration of surgery. Although there is no age limit for consideration for DBS surgery, younger patients may have better results and may tolerate the procedure better. Elderly patients or patients with significant dementia may not be good candidates for DBS surgery.

One of the most important factors in obtaining satisfactory outcomes for patients with PD after DBS is managing expectations (25). It is important to identify the patient’s most disabling symptoms and to assess the patient’s postoperative expectations. It is crucial to explain what the most reasonable outcomes are after surgery. This includes a candid explanation of what symptoms are likely to improve, the magnitude of improvement, and which symptoms may not improve or even worsen after surgery. If there is discord between expectations and surgical results, patients will likely be disappointed with their condition after surgery. Care should be taken when extrapolating published results during conversations with patients because of selection bias. In general, it should be emphasized that DBS serves as an “add-on” therapy, supplementing but not replacing the current therapy of the patient, aiming at improving the motor but not the non-motor symptoms of PD. It comes with risks of complications, during the implantation and during long-term care. Of note, DBS should not be presented to the patient as a cure, and despite optimal programming, the underlying PD will progress.

A critical element in determining successful surgical outcomes for patients with PD is having the support of a multidisciplinary team that specializes in the care of patients with DBS devices. This team typically includes a neurologist who is a specialist in movement disorders, a neuropsychologist who has excellent knowledge of PD and its non-motor features, and a neurosurgeon who has a specialty training in stereotactic and functional neurosurgery. Since DBS for PD was approved by the FDA, there has been a growing trend for DBS surgery to be performed at smaller hospitals with lower volumes of movement disorder surgery. Large, database studies examining the National Inpatient Sample (NIS) have demonstrated that patient outcomes after DBS surgery for PD are better when these operations are performed at hospitals with moderate or high volumes for these procedures (26). While these studies provide evidence for improved early postoperative outcomes at high-volume centers, such as favorable patient disposition and low early complication rates, it does not account for long-term patient outcomes. Device programming, managing patient medications, and general postoperative care are arguably better when provided by expert teams.

SURGICAL PROCEDURE

The surgical procedure for implanting DBS devices can be performed with several approaches in terms of stereotactic systems, intraoperative confirmation of lead position, use of anesthesia, and staging procedures. The key components of the fully implanted system are (i) a precisely implanted intracranial electrode in the target area, (ii) implantation of lead extension wires that connect the intracranial leads to a power generating and programming source, and (iii) implantation of an internal pulse generator (Figure 1).

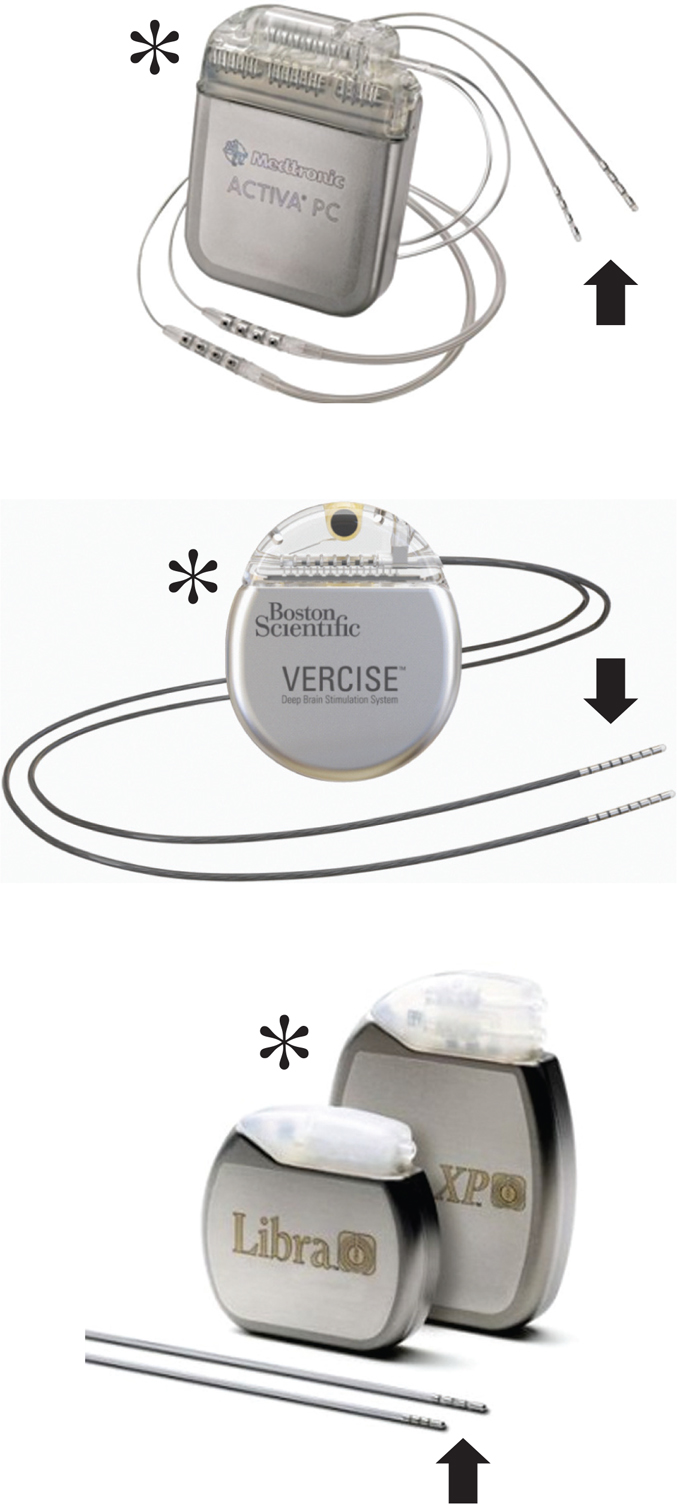

Figure 1 Current deep brain stimulation devices from Medtronic, Boston Scientific, and St. Jude’s Medical. Images demonstrate internal pulse generator (indicated with *) and intracranial electrode with multi-contact configurations (indicated by black arrow). Images provided by Boston Scientific, Medtronic, and St. Jude’s Medical and are used with permission.

Surgery is most commonly performed while the patient is awake; however, several centers offer surgery under general anesthesia (27). There is considerable variation in the procedural details across different centers. At the Toronto Western Hospital, the surgical procedure begins by rigidly fixing a Leksell stereotactic to the patient’s head under local anesthesia. The patient then undergoes stereotactic imaging with the frame in place. Several software packages are available to plan electrode targets and trajectories based on coordinate frame-based, frameless, or robotic stereotaxy.

Once the surgical plan has been made, the patient is brought to the operating room for surgery. The patient is placed in a semi-recumbent position, the hair is clipped and the scalp is prepared with betadine solution. We plan a coronally oriented incision spanning Kocher’s point bilaterally, although several other incision strategies have been described. The scalp is generously blocked with local anesthetic, opened to expose the frontal bone of the skull, and the skull is trephined approximately 1 cm anterior to the coronal suture and at least 2 cm lateral from the midline. The dura is coagulated and opened. Care is taken to minimize cerebrospinal fluid loss during dural opening and throughout the procedure as this can cause brain shift.

Once dural opening is complete, a guide cannula is inserted into the brain 1–1.5 cm above the desired target. Microelectrode recording can then be used to identify the electrophysiological signature of the target structure and map the dorsal–ventral borders. Once a suitable tract is identified, the microelectrodes are removed and a permanent macroelectrode is inserted to the target structure. Test clinical stimulations are then performed at each of the contacts to assess for negative side effects and for clinical efficacy. Once the DBS electrode is properly situated in its final position, as verified by intra-operative fluoroscopy, it is secured to the skull and the incision is closed.

During a second procedure while the patient is under general anesthesia, the distal ends of the intracranial electrodes are connected to extension wires that are tunneled subcutaneously behind the ear down to the chest. A second incision is made 2–3 cm below the clavicle, and a subfascial pocket is made to house the internal pulse generator (IPG). The extension wires are connected to the IPG and the impedances for the system are assessed. Once completed, patients will typically spend one to two nights in the hospital for observation. They are brought back to the clinic 6–8 weeks later to turn on the device and begin programming.

SUBTHALAMIC NUCLEUS

The STN is a small, glutamatergic nucleus involved in the subcortical motor circuitry, measuring approximately 7 mm × 5 mm × 3 mm in dimension. As its name implies, it resides ventrally below the thalamus and zona incerta at the level of the red nucleus in the midbrain. It is bordered anteriorly by the cerebral peduncle and posteriorly by the medial lemniscus. The STN receives excitatory fibers from the cerebral cortex via the hyperdirect pathway and inhibitory inputs from the external segment of the globus pallidus (GPe) as a part of the indirect pathway. The STN sends its excitatory projections to the basal ganglia output nuclei (GPi and substantia nigra pars reticulate [SNr]).

Experimental evidence in rodent and primate models of PD suggests that the STN is critically involved in organizing basal ganglia output and has pathologically increased activity in PD (28–32). These findings were among the rationale for chronic electrical stimulation of this target which was first reported by Benabid et al. in 1994 (33). Since then, several centers have published large case series, and two large, multicenter, randomized controlled trials comparing STN DBS with best medical management have been published (Table 2) (21, 22).

TABLE 2 Studies with outcome data for STN DBS

Reference	Study design	Patients, N	Study duration	UPDRS part III improvement
20	Randomized control trial	156	6 months	41%
21	Randomized control trial	255	6 months	29%
33	Case series, blinded evaluation	18	10 years	25%
34	Case series, blinded evaluation	30	1 year	30%
35	Case series	23	5 years	55%
36	Case series	20	2 years	57%
38	Case series	7	1 year	41%
39	Case series	24	1 year	60%
42	Case series	19	2.3 years	28%
43	Case series	15	1 year	74%

STN, subthalamic nucleus; DBS, deep brain stimulation; UPDRS, unified Parkinson’s disease rating scale.

In 2006, Deuschl et al. reported a randomized trial of neurostimulation versus best medical management among 156 patients with PD. Patients who received DBS treatment had significant improvements in UPDRS part III scores and significantly higher quality of life on PDQ-39 assessments compared to patients who received best medical therapy alone (21). Weaver et al. similarly conducted a large, multicenter, randomized trial comparing STN DBS with best medical therapy among patients with advanced PD. This study enrolled 255 patients and included patients with advanced age. Overall, among patients who received STN or GPi DBS, 71% had a >5 point improvement on the UPDRS part III scores (compared to 32% in best medical treatment group). Furthermore, the DBS group also experienced significant improvements in quality of life (22). The results from these two studies provide solid evidence favoring the use of STN DBS among patients with medication-refractory PD with disabling motor symptoms, dyskinesias, and motor fluctuations.

Apart from the large, randomized clinical trials, several additional studies have concluded that motor function was significantly improved after STN DBS, by 25–60% in the “off” medication state compared to baseline motor scores (34–44). After STN DBS, patients were able to reduce dosages of dopamine replacement medications by approximately 50%. Non-motor symptoms of PD did not improve among patients treated with STN DBS, and there were reports of worsening verbal fluency, mood disorders, suicide, hypophonia, and worsening postural and gait disturbances. Since these initial reports demonstrating significant benefits after STN DBS surgery, several studies have assessed the long-term efficacy at 5-year and 10-year time points (34, 36, 38, 45). These studies indicate that STN DBS has continued positive benefits for patients by improved motor scores and in quality-of-life assessments.

GLOBUS PALLIDUS INTERNUS

The internal segment of the GPi is a wedge-shaped nucleus that is one of the main inhibitory output centers of the motor circuit in the basal ganglia. It is bordered laterally by the external segment of GPe and medially by the posterior limb of the internal capsule, and resides superiorly above the optic tract. The GPi receives input from the striatum, GPe, and STN and projects inhibitory fibers to the motor thalamus (Vop, Voa, and PCfc) via the ansa lenticularis and lenticular fasciculus.

Pallidotomy has long been known to improve the motor symptoms of PD (11, 12), and early studies comparing unilateral pallidotomy with unilateral pallidal DBS demonstrated equipoise in terms of improvement of motor symptoms (46). In 1994, Siegfried et al. first reported GPi DBS for the treatment of PD (47). Several case series have demonstrated significant improvements in motor function compared to preoperative motor evaluations (48–50). UPDRS part III scores are reported to improve by 30–50%, with approximately 50% improvement in rigidity and 80% improvement in tremor. Significant improvements are also noted in dyskinesia with GPi DBS. However, unlike STN DBS, there were no decreases in dopamine replacement medications, but there were fewer overall concerns for cognitive and mood changes with GPi DBS.

COMPARISON OF STN AND GPi DBS

DBS targeting both STN and GPi has been reported to be effective in treating motor symptoms in the “off” medication state in PD patients. However, based on the initial clinical studies that described improvement in motor scores and complication rates, it was unclear whether one site provided superior outcomes compared to the other. Several studies have now been published that compared treatment outcomes with STN versus GPi DBS, including several controlled trials and a large, multi-centered, randomized trial (Table 3) (51–56).

TABLE 3 Studies comparing STN and GPi DBS

Reference	Study design	Patients, N	Study duration	Conclusions
50	Randomized, blinded	10	12 months	Similar response
51	Randomized, blinded	134	3 months	Both sites had significant improvements
52	Randomized, blinded	316	24 months	Both sites had similar levels of improvement
53	Randomized	128	12 months	No difference in ADL, and STN DBS had more significant improvement in UPDRS III
54	Retrospective, case control	133	12 months	Overall outcome similar for dyskinesia control

STN, subthalamic nucleus; GPi, globus pallidus; DBS, deep brain stimulation; ADL, activities of daily living; UPDRS, unified Parkinson’s disease rating scale.

In 2010, Follett et al. reported on 299 patients who were randomized to receive STN DBS (147 patients) or GPi DBS (152 patients) and were followed clinically for 24 months (53). Blinded assessments were performed at 6 and 24 months. In this study, there was no difference in the degree of motor improvement in the “off” medication state comparing STN with GPi stimulation at the 6- or 24-month study time points. Overall, there were no differences in complication rates between the two sites, with 56% of patients who received STN DBS reporting a serious adverse event compared to 51% of patients who received GPi DBS. Among patients who received STN DBS, there was a significant reduction in dopamine replacement medication required at 24 months compared to GPi DBS, which is consistent across several studies. In addition, patients who received STN DBS demonstrated a significant decrease in visual motor processing speed compared to changes seen among patients who received GPi DBS. Patients with STN DBS also had worsened depression scores compared to patients with GPi DBS (53).

Odekerken et al. (53) also performed a multicenter, randomized trial with video-blinded assessments and compared STN with GPi DBS. The primary outcomes in this study were (i) measure of functional health and (ii) composite evaluation of cognitive, mood, and behavioral effects. Secondary outcomes were symptom scales and patient questionnaires. One hundred twenty-eight patients were enrolled of whom 65 received GPi DBS and 63 received STN DBS. There were no differences in primary outcomes comparing GPi and STN DBS; however, there were larger improvements in the ‘off’ condition UPDRS score among patients with STN DBS. Based on these findings, the authors suggested that STN could be the preferred target for patients with advanced PD.

Most studies directly comparing STN and GPi DBS suggest that motor evaluations and improvements in quality-of-life assessments are equitable (51–56). Among patients with medication-induced dyskinesias, where one of the goals of treatment is to reduce levadopa equivalent dosages, STN DBS may be the preferred treatment. On the other hand, if reducing medication dosages is not the primary goal of treatment, GPi DBS may be used as an anti-dyskinetic therapy, without reducing medication doses.

Patients who are candidates for DBS surgery should be evaluated by a neuropsychologist for depression, cognitive impairments, and dementia. For patients with a history of depression, suicidal ideation, or suicide attempts, it is imperative to determine whether these patients are clinically stable with regard to their psychiatric health and have proper social support in place prior to enrolling in surgery. Among patients with a significant history of depression or mild dementia and among patients with advanced age who are otherwise good surgical candidates for DBS, some surgeons advocate for GPi DBS surgery compared to STN DBS to minimize the risks of worsening depression or cognitive changes postoperatively (57). Several early studies cited worsening depression (with suicide attempts) and impaired cognitive function after STN DBS, which prompted investigators to question whether GPi DBS may be a more suitable treatment among this patient population. However, several recent meta-analyses comparing STN and GPi DBS failed to demonstrate a significant difference between these two targets. Despite these studies, many teams continue to implant GPi DBS when there is a question of cognitive impairment, advanced patient age, or history of depression.

VENTRALIS INTERMEDIATE NUCLEUS AND PEDUNCULOPONTINE NUCLEUS

Tremor is a prominent motor feature of PD, and for patients with tremor dominant forms of PD, it may be the most disabling symptom. Thalamic lesioning procedures have been reported for more than 50 years among PD patients for relief of disabling tremor and are still used today (9, 13, 58). Thalamic surgery for movement disorders is most commonly used among patients who have essential tremor (ET) (59, 60). The target is the ventral intermediate (Vim) thalamic nucleus. The Vim nucleus is roughly 4 mm in the anterior–posterior dimension and approximately 10–12 mm in the rostral–caudal dimension. It resides anterior to the ventrolateral caudalis nucleus, which receives somatosensory fibers from the medial lemniscus, and posterior to the ventralis oralis posterior (Vop) nucleus, which receives input from the basal ganglia. The Vim nucleus receives unconscious proprioceptive fibers from the dentatorubrothalamic tract.

Among the early studies using chronic electrical stimulation for movement disorders, the Vim nucleus was targeted as a treatment for ET and PD. However, among patients with PD, Vim stimulation was only able to alleviate tremor symptoms and was not effective for the management of the other cardinal motor symptoms such as akinesia and rigidity, which are often the more disabling symptoms of PD, especially the more common akinetic-rigid forms of PD. Accordingly, Vim DBS is most commonly used for patients with ET (59, 60), while STN DBS, which is also highly effective in treating tremor symptoms related to PD, is the treatment of choice among patients with PD. Vim DBS in the context of PD is reserved for those patients with tremor-dominant PD, in whom the tremor has the largest impact on their quality of life and the other motor symptoms of PD are either mild or do not significantly impact the quality of life. It is important that patients understand the goal of the surgery is tremor control and that as PD progresses they may need additional electrodes placed at STN or GPi in the future to improve quality of life with respect to the other motor manifestations of PD.

The pedunculopontine nucleus (PPN) is a cholinergic/glutamatergic cell mass that resides caudal to the substantia nigra. It receives inhibitory and excitatory fibers from the main basal ganglia output centers (GPi and STN) and projects to the striatum, thalamus, spinal cord, and brainstem (61). The PPN is thought to be an important relay center involved in coordinated locomotion.

Shuffling gait and freezing are prominent, disabling features of PD; and current DBS targets do not have a significant positive impact on these symptoms when resistant to dopaminergic medications. In an effort to address this clinical need, several groups have tested PPN DBS as a treatment for gait instability related to PD (62–66). Among the centers that have reported outcomes, there has been considerable variability in patient selection, procedures performed (unilateral vs bilateral), and PPN targeting methods (67). Thus far, in studies that have conducted blinded assessments, there have not been any objective improvements; however, when PPN is stimulated with lower frequencies and in combination with STN DBS, there may be improvements in gait freezing and the number of falls (64). Further work is needed to define the role of PPN DBS in gait disturbances in PD, and at this time, it remains an investigational but promising target.

CONCLUSION

DBS is an effective treatment for controlling many of the motor symptoms associated with PD among well-selected patients. Optimal patient outcomes can be best achieved by multidisciplinary teams (which include neurologists, neuropsychologists, and neurosurgeons), that are highly experienced in postoperative management of patients with PD. The most common targets for DBS in PD are the STN and the GPi. Both of these targets are equally effective in controlling motor symptoms in the “off” medicated state in PD. However, STN DBS is effective in reducing levodopa requirements postoperatively, while GPi DBS may have fewer negative effects on mood and cognition, especially among older patients. Vim DBS is reserved for patients whose primary disabling symptoms are tremor, and PPN DBS is an experimental treatment for patients with gait and postural instability.

Current DBS therapy is delivered as a continuous train of electrical pulses; however, many people with Parkinson’s disease have fluctuations in their symptoms throughout the day. As more information about pathological neuronal firing is elucidated in Parkinson’s disease, there is an effort to create DBS systems that can detect pathological brain activity and deliver electricity when these features are present. This strategy, termed closed-looped or responsive DBS, has the potential to improve symptoms of Parkinson’s disease while minimizing potential complications of continuous stimulation.

Advances in DBS device engineering have improved the configuration of the intracranial electrodes and are progressing towards smaller devices with longer battery life. Currently, several device manufacturers employ “directional leads” whereby current settings can be preferentially selected to create a diverse and selective electrical field and zone of effectiveness. This may allow further programming options to minimize side effects while maximizing benefits of stimulation. Smaller internal pulse generators with longer battery lives are on the horizon, which may obviate the need for extension wires and chest implants that need to be replaced every 3–5 years.

Conflict of interest: P.D.V. has received grants for research from Research Foundation – Flanders and the European Society for Stereotactic and Functional Neurosurgery (ESSFN), and grants for education and travel from the World Society of Stereotactic and Functional Neurosurgery (WSSFN), Medtronic and St. Jude-Abbott. A.M.L. is a consultant for Medtronic, Boston Scientific, and Insightech. A.F. is a consultant for Abbvie, Medtronic, Boston Scientific, Sunovion, Chiesi Farmaceutici, UCB, and Ipsen. The other authors declare no potential conflicts of interest with respect to research, authorship and/or publication of this manuscript.

Copyright and permission statement: To the best of our knowledge, the materials included in this chapter do not violate copyright laws. All original sources have been appropriately acknowledged and/or referenced. Where relevant, appropriate permissions have been obtained from the original copyright holder(s). Image provided by Boston Scientific. Medtronic is providing permission to use its copyrighted images of devices and therapies but does not control whether that use conforms to Health Canada approved or cleared indications (© 2017 Medtronic). Libra, LibraXP, and St. Jude Medical are trademarks of St. Jude Medical, LLC, or its related companies. Reproduced with permission of St. Jude Medical, © 2018, all rights reserved.
